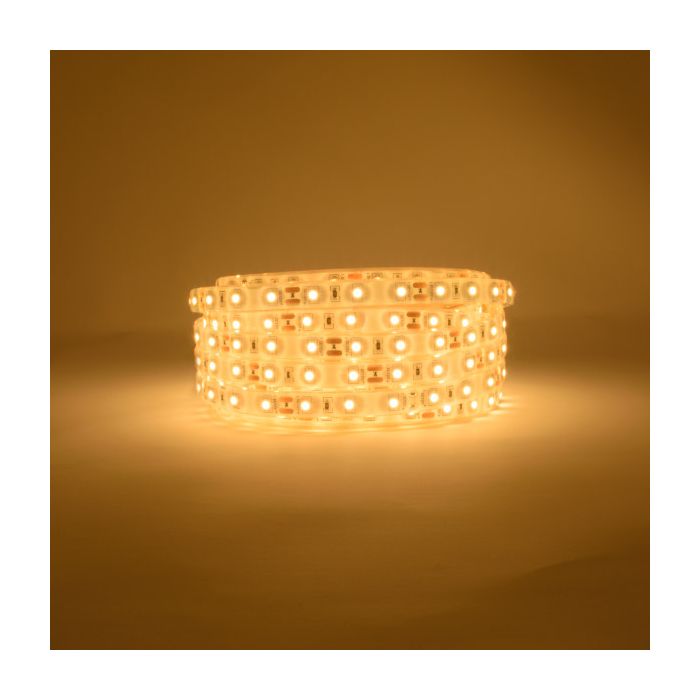

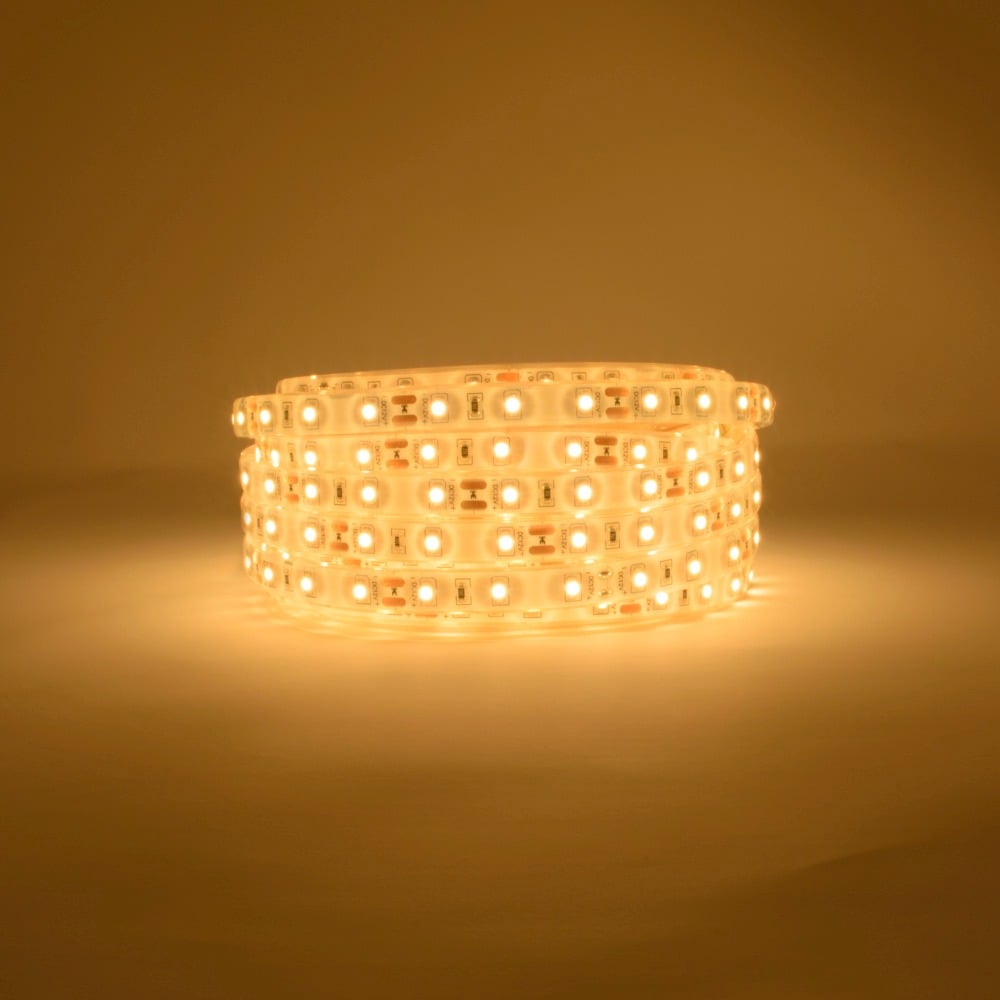

With a CRI Rating greater than 80 and 60 x 50/50 LED's /m at 4.8w /m, ProFlex 12v warm white (2,400 - 2,700K) is perfect for use in the installation industry where a reliable and professional grade LED flexible lighting product is required. The very rich warm white colour is suitable for use in lounge and relaxation areas or dark panelled rooms as the light will enhance rather than distract from the ambience. The IP67 rated silicone coating also enables it to be installed in wet or damp environments such as swimming pools, kitchens or bathrooms.
Our ProFlex 12v products are supplied on a 5m roll and can be cut to size every 50mm and fixed into place with the attached 3M sticky backing.
ProFlex 12v is fully dimmable and compatible with our dimmable 12v drivers and RF hand held or wall mounted remote controllers including our range of SunRicher products. In addition, we stock a variety of DMX512 decoders so that our ProFlex products can be connected to a DMX system.
Specification
| Product Code: | 100.522 |
|---|---|
| Manufacturer | LED Technologies |
| Product Type | Flex |
| Colour | Warm White |
| IP Rating | IP67 Waterproof |
| LED per mtr | 60 p/Mtr |
| Guarantee Period | 2 Years |
| Wattage | 24w |
| Current | 400mA/M |
| Input Power: | 12v |
| PCB Weight | 2oz |
| Weight (g) | 450.0000 |
| Size: | 10 x 4.8 x 5000mm Roll |
| Reel Length | 5M |
| Beam Angle: | 120 degree |
| LED Spacing | 16.7mm |
| Lumens P/LED | 6-7lm |
| Lumens P/Mtr | 450lm |
| CRI Rating (greater than) | CRI 80 |
| Dimmable: | Yes |
| Cut Intervals: | 50mm |
| LED QTY | 60 LED Per Mtr |
| LED Type: | Led chip 3528 |
| Continuous run | 5 mtr |
| Average LED life Hrs: | 50,000 |
| CE and RoHS: | Yes |
| Peelable Back | 300LSE 3M Adhesive Tape |
| Colour Temperature Variation | IP67 Yes |
| Base Type | Connector one end tails other |
