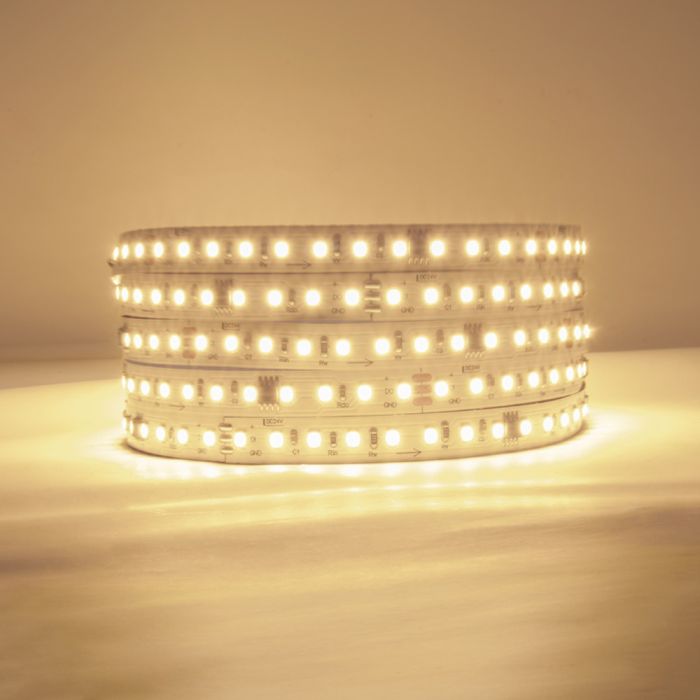

Pixel HD Daylight White (4000K) SPI Pixel Strip White PCB 24V 55W IP20

This single colour daylight white (6000K) addressable white LED strip from our Pixel HD range features 120 x 2835 SMD LEDs per metre powered by the popular WS2811 control chip, making it compatible with most SPI controllers. Each 100mm section of the strip forms one individually addressable pixel, allowing dynamic lighting effects and controlled movement of white light along the strip length.

The white addressable LED strip is fitted with connectors at both ends, enabling additional lengths to be linked together. When linking runs longer than 5m, it is important to connect a 24V constant voltage driver at each 5m section. Power should not be linked beyond 5m lengths, although the signal connectors can still be connected so that only one SPI controller is required at the beginning of the installation.

This individually addressable white LED strip is ideal for both domestic and commercial applications including bars, restaurants, feature lighting and architectural installations. When paired with an SPI controller such as the SPIW5 unit (sold separately), popular animated effects can be achieved including the “power on and off” sequence where the light travels along the strip when switched on and retracts when powered off.

For more information on our addressable white LED strip range, including SPI and DMX controlled pixel tape solutions, please contact our technical sales team by phone, email, live chat or WhatsApp through LED Technologies.
