The Future of Flexible Lighting

View Collection

Fixed Colour LED Neon

Vibrant, consistent illumination in four distinct primary colours.
NEOLINEAR Nano Red Side View Flexible LED Neon - 620nm

Nano Red

Code: 102.195 620nm • 95 lm/m
View Product

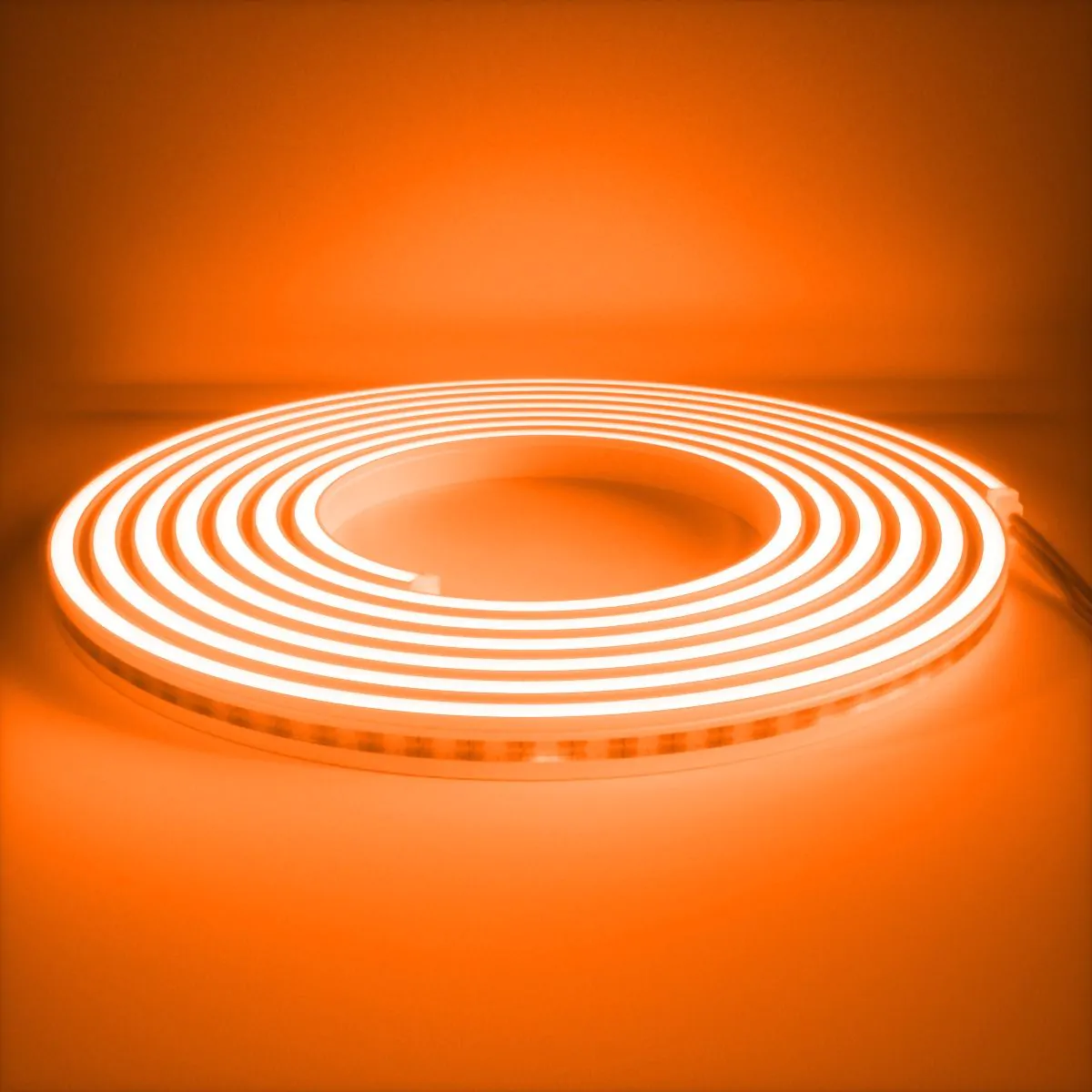

NEOLINEAR Nano Orange Side View Flexible LED Neon - 590nm

Nano Orange

Code: 102.304 590nm • 195 lm/m
View Product

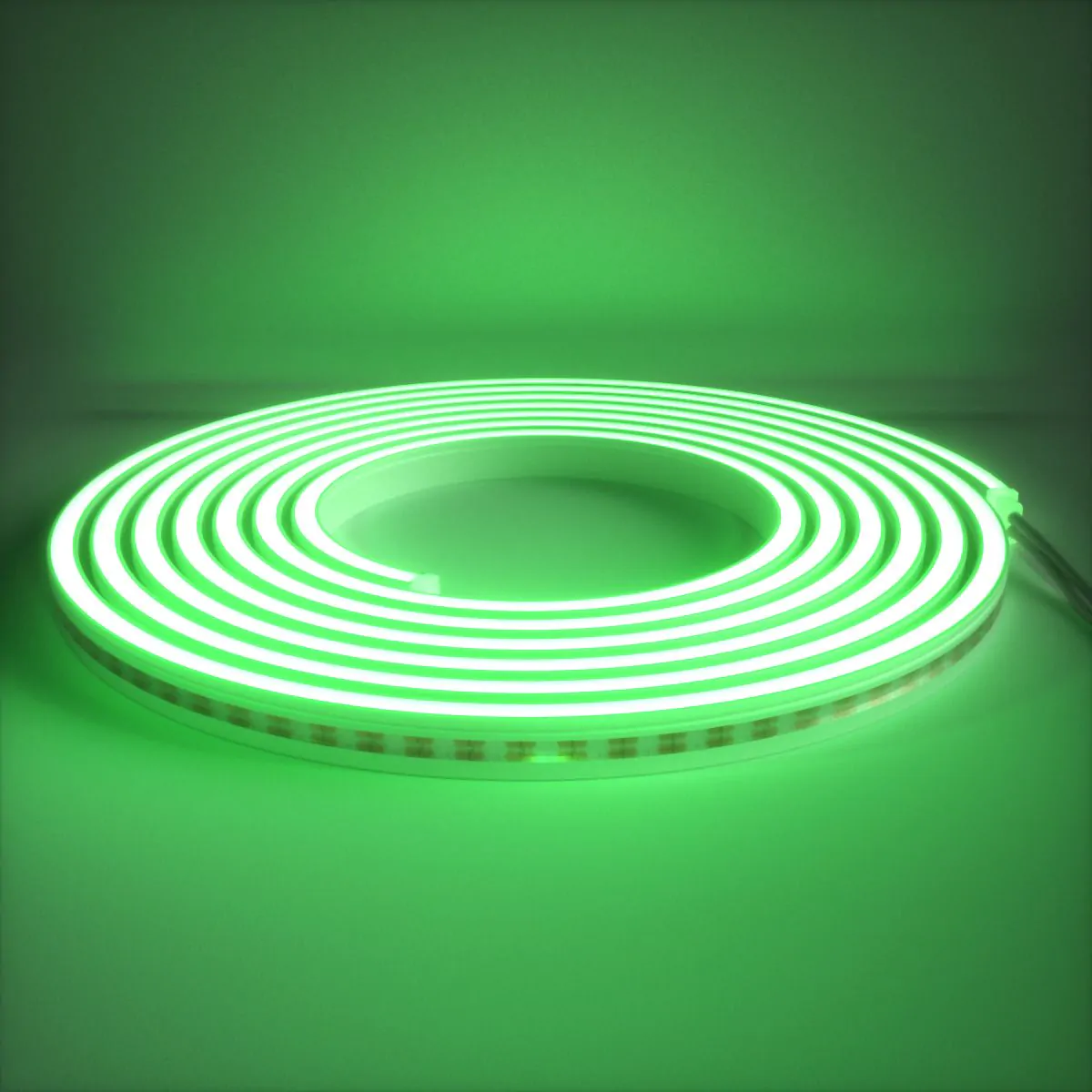

NEOLINEAR Nano Green Side View Flexible LED Neon - 520nm

Nano Green

Code: 102.196 520nm • 153 lm/m
View Product
NEOLINEAR Nano Blue Side View Flexible LED Neon - 460nm

Nano Blue

Code: 102.197 460nm • 39 lm/m
View Product

Fixed White LED Neon

A spectrum of white temperatures from warm ambient to cool daylight.

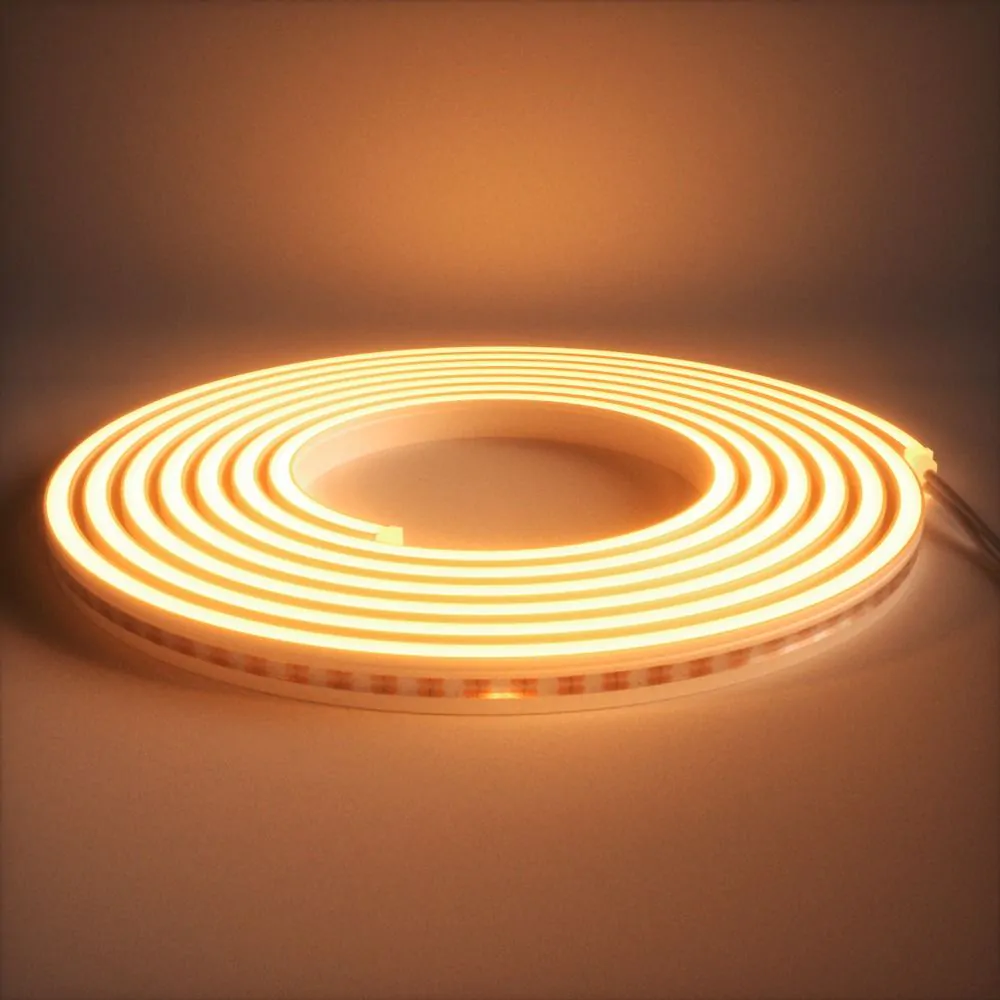

NEOLINEAR Nano 2200K Extra Warm White LED Neon Side View

Nano 2200K

Code: 102.189 Extra Warm • 268 lm/m
View Product
NEOLINEAR Nano 2700K Warm White LED Neon Side View

Nano 2700K

Code: 102.190 Very Warm White • 317 lm/m
View Product
NEOLINEAR Nano 3000K Warm White LED Neon Side View

Nano 3000K

Code: 102.191 Warm White • 295 lm/m
View Product
NEOLINEAR Nano 4000K Daylight White LED Neon Side View

Nano 4000K

Code: 102.192 Daylight • 322 lm/m
View Product

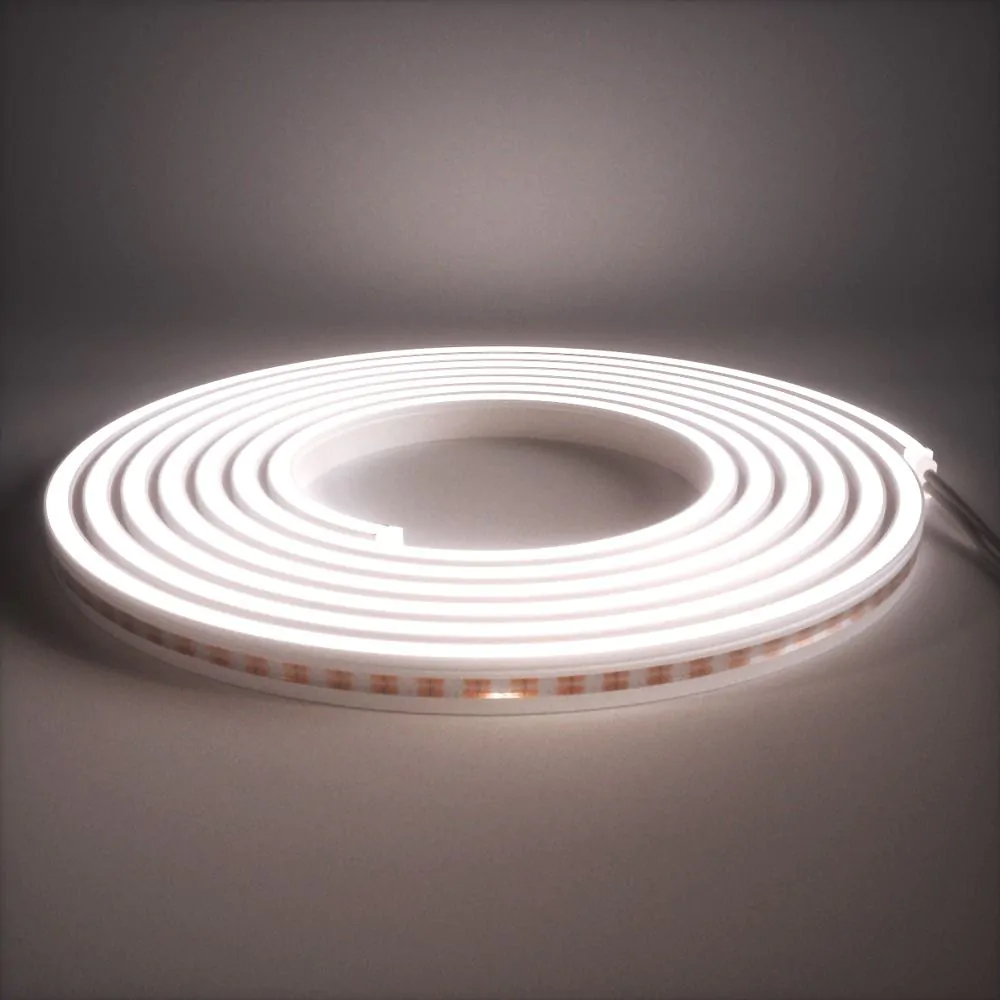

NEOLINEAR Nano 5000K Natural White LED Neon Side View

Nano 5000K

Code: 102.193 Natural • 286 lm/m
View Product
NEOLINEAR Nano 6000K Cool White LED Neon Side View

Nano 6000K

Code: 102.194 Cool White • 281 lm/m
View Product

Nano Accessories

Professional mounting and sealing components for a perfect finish.

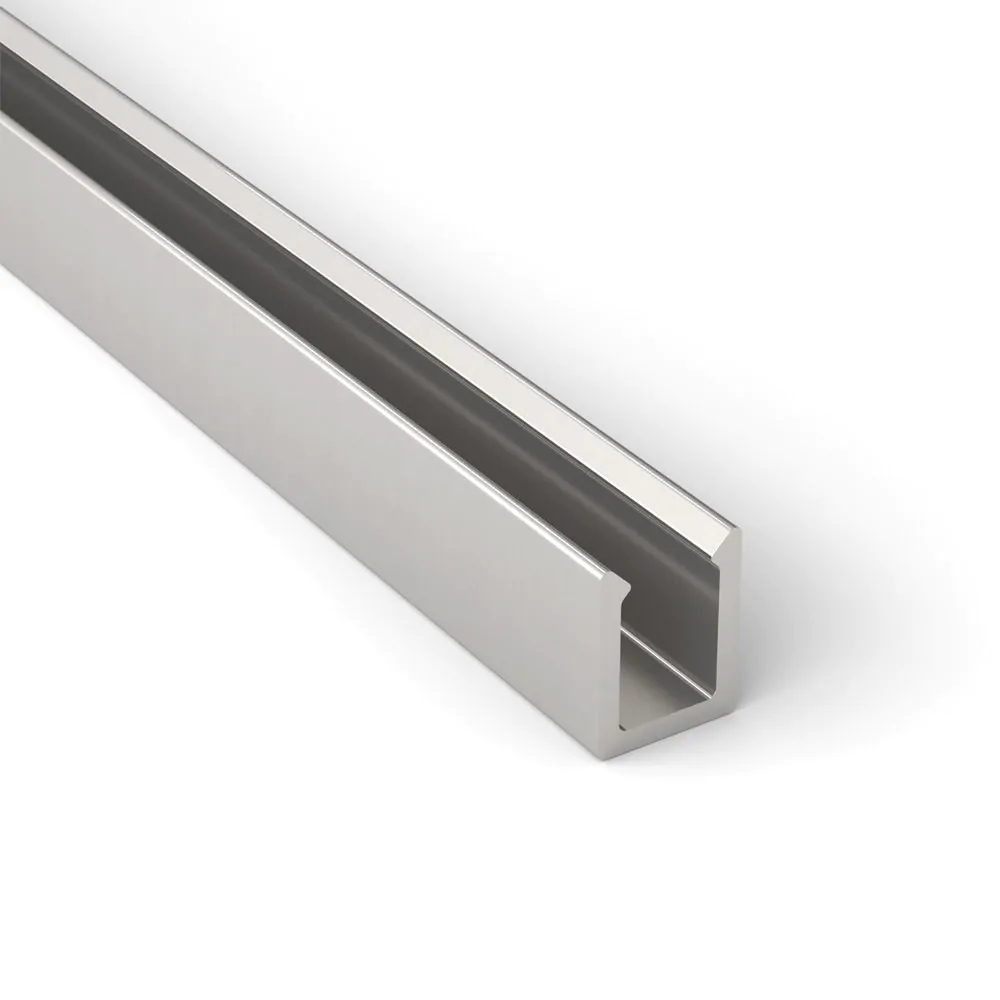

Brushed Aluminium Mounting Profile for NEOLINEAR Nano - 1m

Nano Aluminium Profile

1 Metre • Brushed Aluminium
View Product

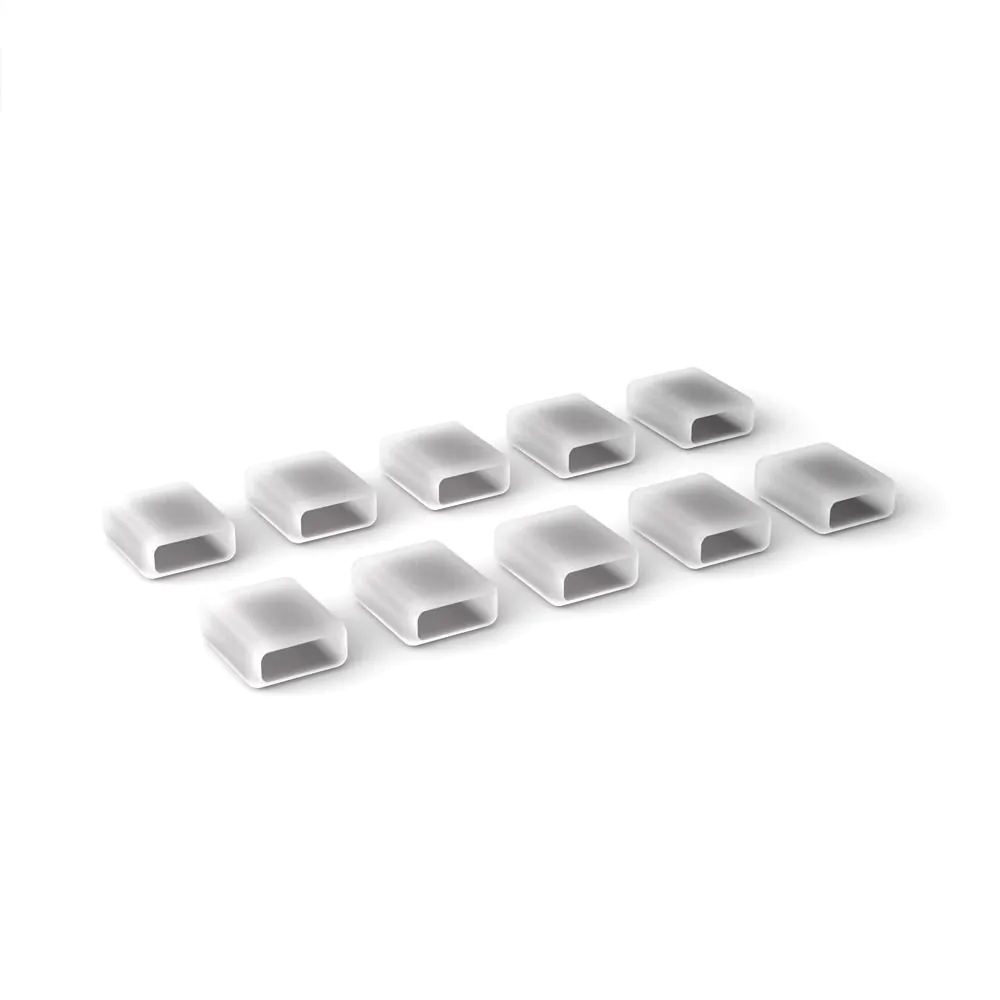

IP67 Sealed End Caps for NEOLINEAR Nano - Pack of 10

End Cap Pack

10 Pieces • IP Seal
View Product
Precision Engineering

Unrivalled Flexibility

Engineered for professional applications requiring absolute precision.

Unlike traditional LED strips or Neon Flex, the NEOLINEAR™ Nano range can be cut at any point along its length. This innovative design eliminates dark spots and allows for bespoke lengths that suit your exact design needs, making it perfect for intricate LED signage and joinery.

  • Free Cutting: Cut vertically at any point (Zero-Dark Spot).

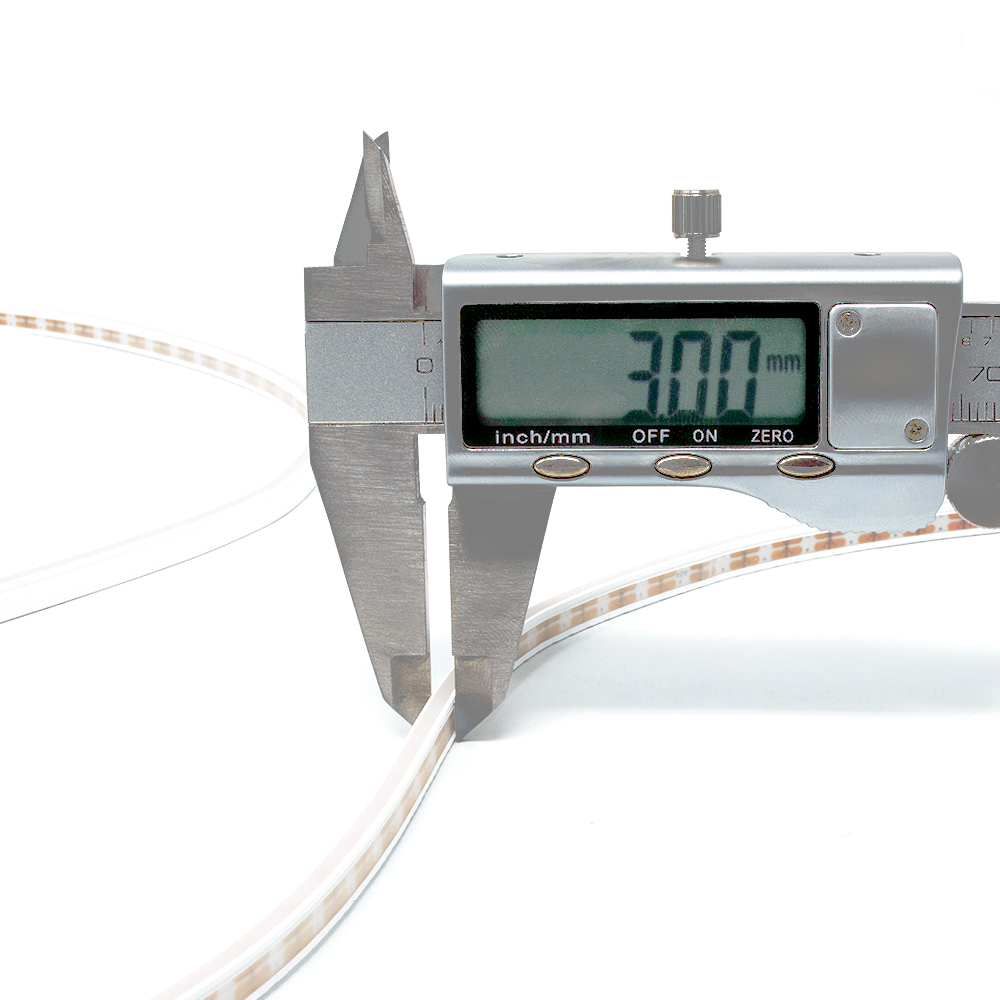

  • Ultra Slim Profile: Just 3mm wide x 6mm deep.
  • IP67 Waterproof: Rated for robust indoor & outdoor use.

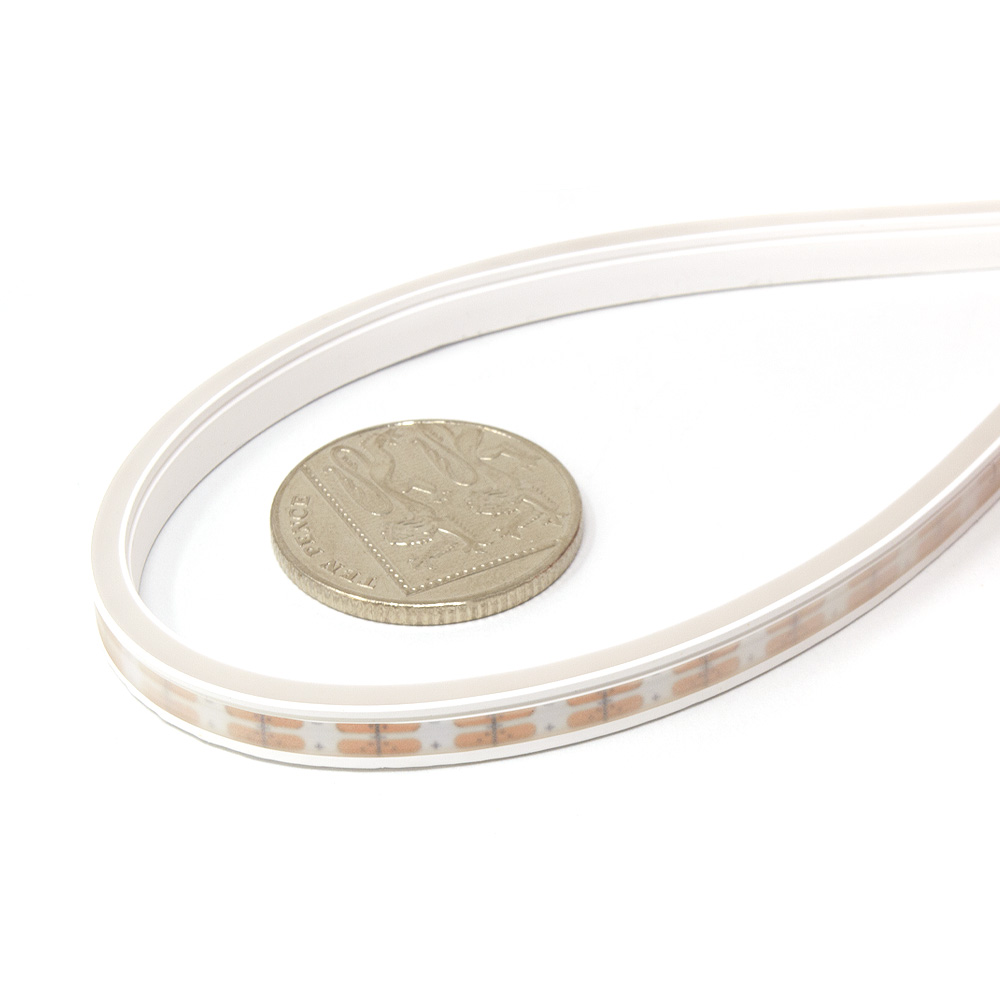

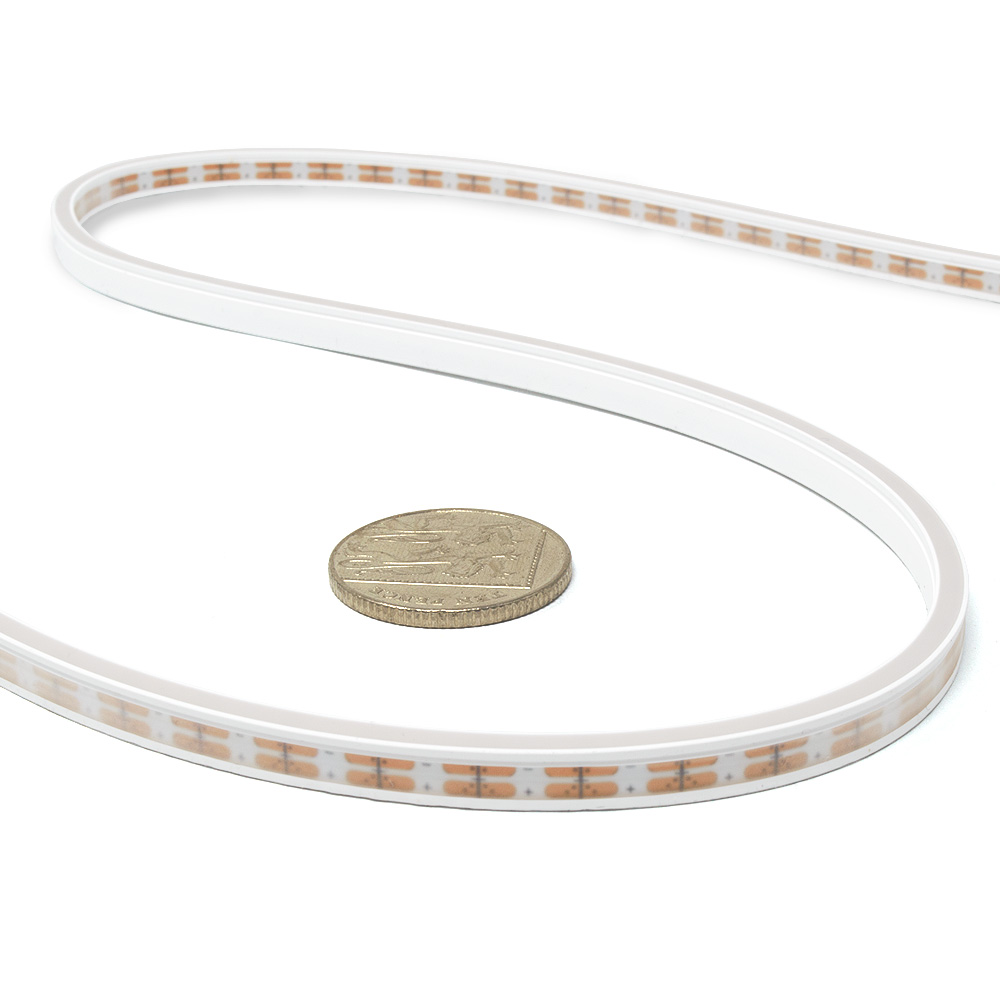

  • Extreme Bend Radius: Can wrap tightly around a 10p coin (30mm radius).

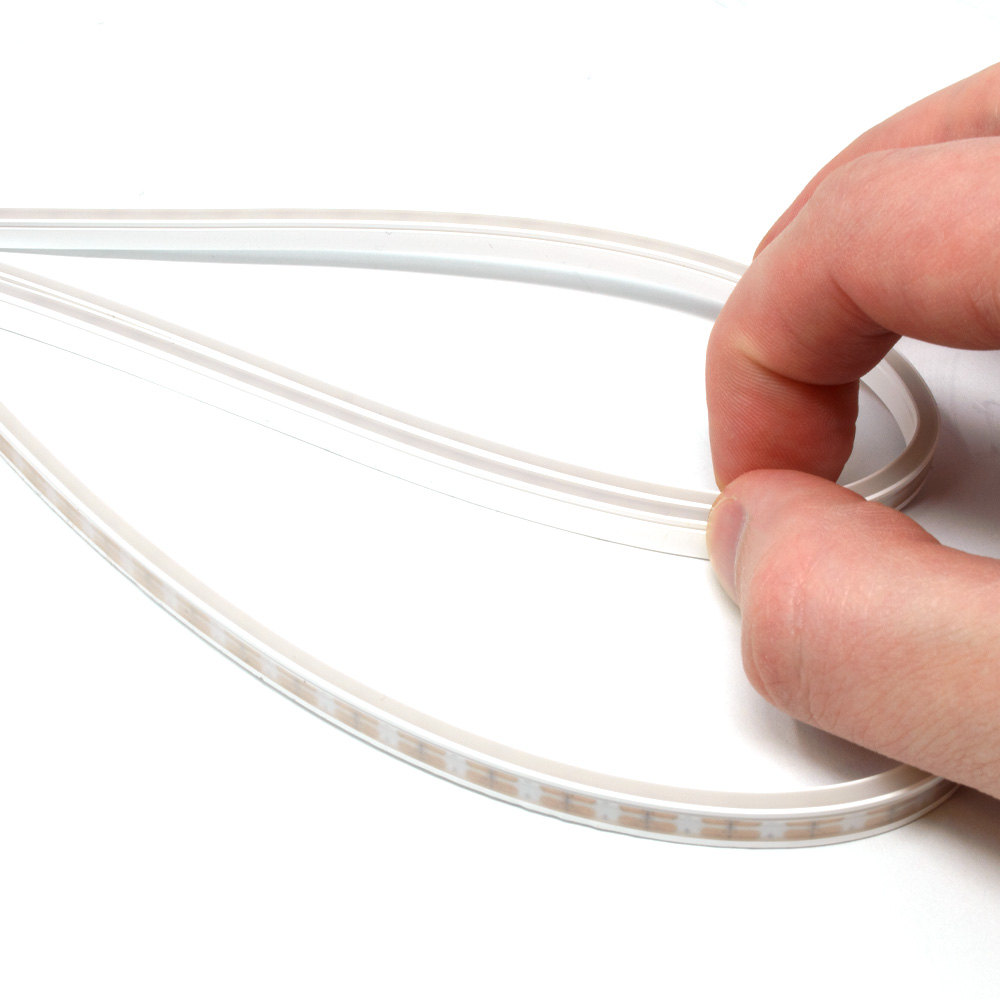

Nano LED Neon Close Up Detail 1 Nano LED Neon Close Up Detail 2 Nano LED Neon Close Up Detail 3 Nano LED Neon Close Up Detail 4

Why Choose Nano?

See how professional-grade specification differs from standard options.

NEOLINEAR™ Nano Professional Grade
  • ✓ Free Cutting: Cut exactly where you need (Zero Dark Spots).
  • ✓ Dimensions: Ultra-slim 3mm x 6mm profile.
  • ✓ Bend Radius: Extreme 30mm flexibility.
  • ✓ Material: UV-Stable Silicone (No yellowing).
  • ✓ Warranty: 5 Years commercial guarantee.
Generic LED Neon Standard / Economy
  • ✗ Fixed Cutting: Only cut every 25mm or 50mm.
  • ✗ Dimensions: Bulky 10mm or 12mm profiles.
  • ✗ Bend Radius: Limited 60mm+ (Hard to curve).
  • ✗ Material: Standard PVC (Prone to cracking/yellowing).
  • ✗ Warranty: Typically 1 or 2 Years.

Product Overview

See the NEOLINEAR Nano features in action.

Applications

Versatile lighting solutions for commercial and residential projects.

Installation Guide

How to cut, seal, and mount NEOLINEAR™ Nano.

Cutting Procedure
Mounting & Power
1
Measure Exact Length Because Nano features "Free Cutting" technology, you can measure exactly where you need the light to end without looking for fixed cut marks.
1
Fix Profile or Prepare Channel Secure the aluminium mounting profile to your surface using countersunk screws or adhesive first. If routing a groove, ensure the channel is clean and dry.
2
Cut Vertically Using sharp electrical shears or heavy-duty scissors, cut straight down through the neon body.
2
Insert Neon Strip Align the neon with the profile or the pre-routed groove and firmly press it into place. The precision friction-fit design grips the strip securely, creating a seamless, clip-free installation.
3
Seal the End Apply non-corrosive silicone glue to the cut end and push-fit the Nano End Cap to maintain the IP67 rating.
3
Connect Power Connect the 300mm cable tails to a suitable power source. For optimal performance, you can browse our comprehensive range of 24V drivers here to find the correct match for your setup.
Important: Always cut vertically (90°). Do not cut at an angle, as this may damage the internal PCB.
Note: Once cut, you cannot make a new electrical connection at the cut end. The product is supplied with tails at both ends for two separate runs if cut once.

Technical Specifications

Detailed electrical and physical dimensions.

Input Voltage24V DC
Dimensions3mm (W) x 6mm (D)
CuttingFree Cutting (Vertical)
Bend Radius30mm Minimum (Side View)
IP RatingIP67 Waterproof
Power9W per Metre
Warranty5 Years
NEOLINEAR Nano Dimensions Diagram
