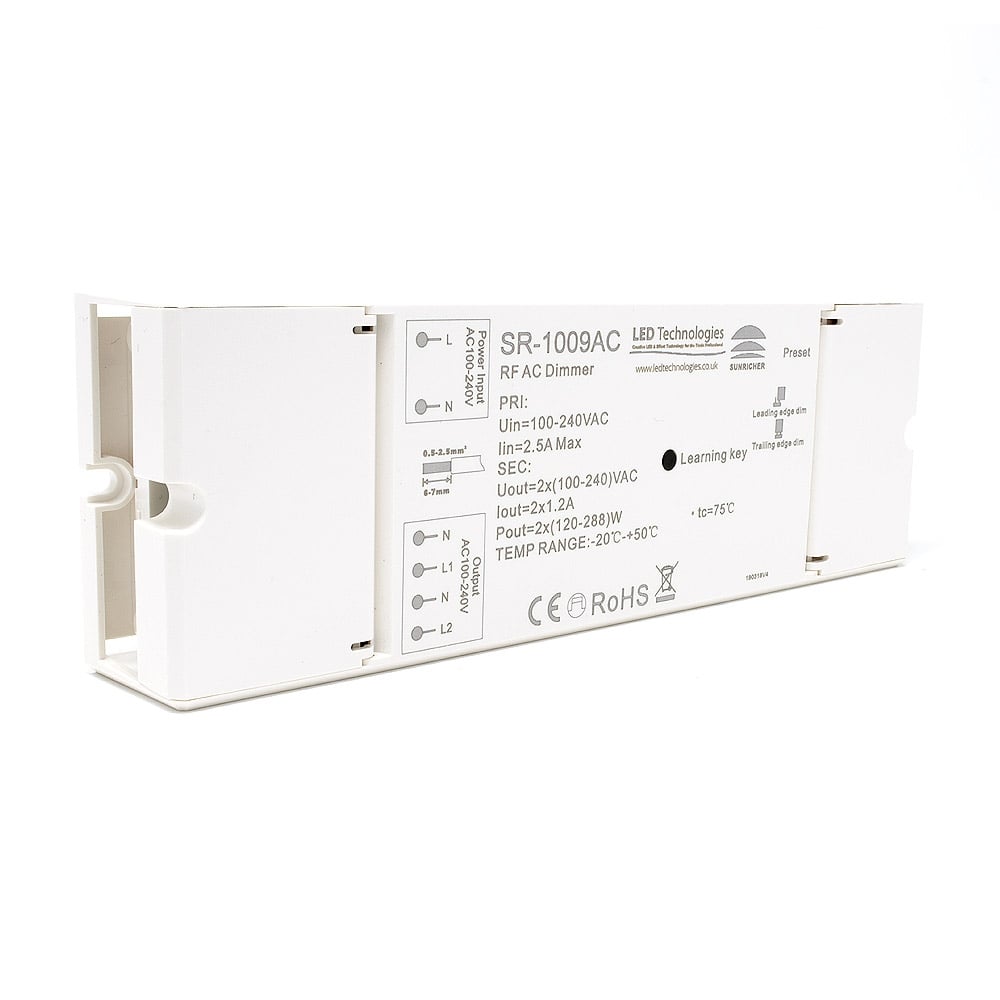

Sunricher RF to TRIAC AC Dimmer

Product Code: SR1009AC
  • Converts RF to a TRIAC AC dimming
  • For dimming mains powered products
  • Easy pair to Sunricher RF remotes
  • Will dim AC mains LED lamps
  • Also for incandescent & halogen lamps
  • One key pairing for ease of setup
  • For 100v - 240v AC products only
  • Leading & trailing edge settable
Guarantee
IP Rating
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

As part of our Sunricher range of professional lighting control products, this slim, two channel RF to TRIAC AC Dimmer is an installation grade product suitable for use in domestic and commercial environments such as hotels, restaurants and retail outlets.

The switch can be paired to a compatible Sunricher RF remote controller and will then power on and off or dim your mains powered devices.  It supports both resisitve and capacitive loads and is both TRIAC and MOSFET dimmable with an innovative minimum brightness function which is user settable. The switch is a two channel unit (both channels operate together) with a maximum load of 1.2A  per channel.  The unit adopts both forward and reverse phase cut dimming technology.

Quick Specs

Guarantee
IP Rating
Connectivity

What's in the box?

  • Single channel RF to TRIAC AC Dimmer
  • Instruction manual
Product Code: SR1009AC
Product Packed Gift box
Manufacturer LED Technologies
Product Type Controller / Receiver
Colour
rthrhrh
White
IP Rating IP20 Non-Waterproof
Guarantee Period 5 Years
Wattage 2 x 120w - 288W
Current 2 x 1.2A
Input Voltage
This is the required amount of volts needed to power the product.
100v - 240v AC
Output Voltage 100v - 240v AC
Connectivity RF
Size: 170 x 59 x 29mm
Dimmable: Yes
Wireless Range Up to 20 metres
Voltage Type Mains Voltage
Operating Temp 0-40°C
Operation Frequency 868 / 869.5 / 916.5 / 434MHz
Relative Humidity 8% to 80%
Datasheet - SR1009AC2501AC Download
