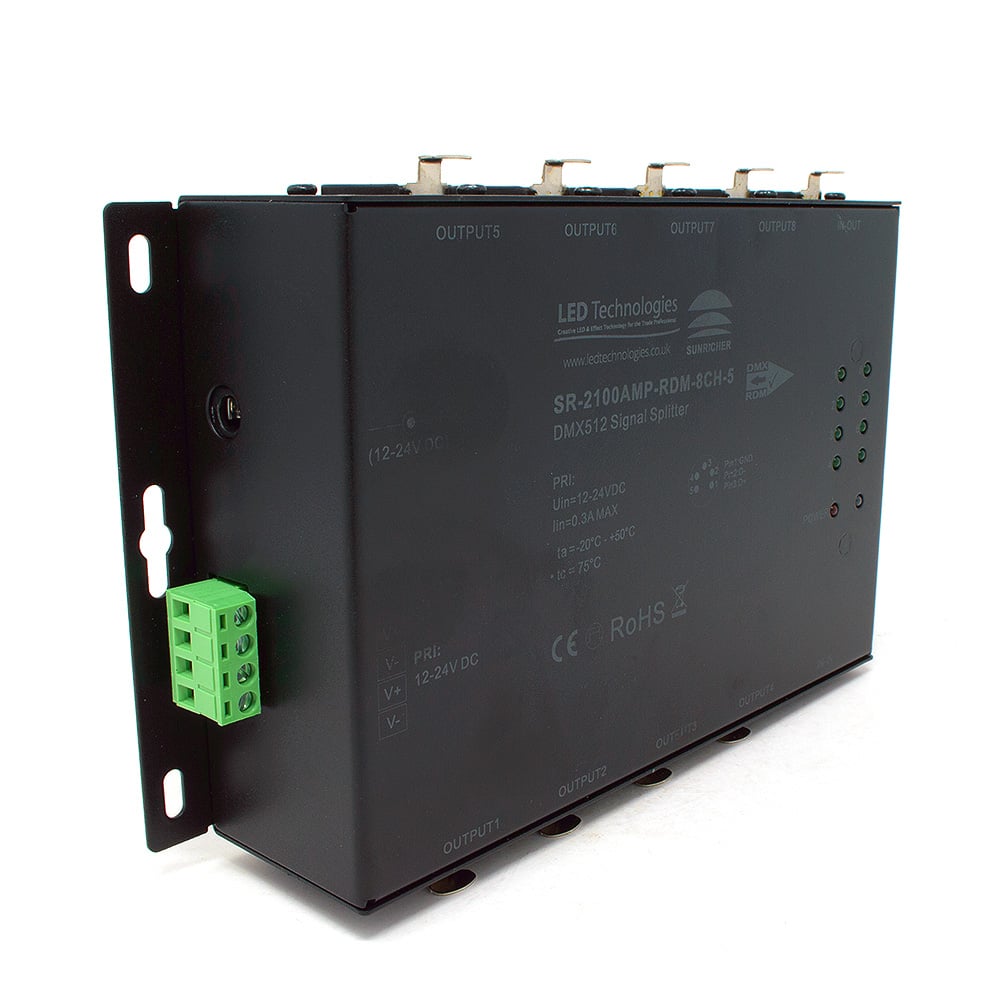

Sunricher DMX Professional 8 Way DMX Splitter & DMX Amplifier with RDM

Product Code: SR2100AMPRDM8CH5
  • Sole UK & Ireland Authorised Distributor
  • 8 Way RDM enabled DMX Splitter
  • Outputs fully isolated from the input
  • LED DMX signal indicators for each channel
  • 8 x 5 Pin XLR DMX output sockets
  • Extends number of devices up to 32/output
  • Feed-through DMX XLR sockets
  • 12v or 24v DC power input
  • Supplied with 8 x 120 Ohm terminator resistors
Black
12V / 24V DC
check-circle Same day shipping available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Already have an Account? - Sign In No Account? - Create a Trade Account →

Product Description

Sunricher DMX Professional 8 Way DMX Splitter & DMX Amplifier with RDM

• Sole UK & Ireland Authorised Distributor
• 8 Way RDM enabled DMX Splitter
• Outputs fully isolated from the input
• LED DMX signal indicators for each channel
• 8 x 5 Pin XLR DMX output sockets
• Extends number of devices up to 32/output
• Feed-through DMX XLR sockets
• 12v or 24v DC power input
• Supplied with 8 x 120 Ohm terminator resistors

DMX Splitter 8 Way for Professional Lighting Systems

This DMX splitter 8 way unit is designed to provide reliable signal distribution and amplification for professional DMX lighting installations. As a high-performance DMX splitter, it ensures stable signal transmission across complex lighting networks while maintaining full isolation between inputs and outputs.

The unit can be easily integrated at any point along a DMX line using its 5-pin XLR connections, making it suitable for both new and existing installations.

Key Features of the 8 Way DMX Splitter

Reliable DMX Signal Distribution

  • 1 x male 5-pin XLR DMX/RDM input socket

  • 1 x female 5-pin XLR DMX/RDM throughput socket

  • 8 x 5-pin female XLR DMX/RDM output sockets

  • Each output supports up to 32 devices

Isolated Outputs for System Protection

Each output is fully isolated from the input, improving system stability and reducing the risk of signal interference across your lighting network.

LED Status Indicators

Built-in LED indicators on each channel confirm active DMX signal transmission, making fault detection and system monitoring straightforward.

Extended Signal Distance

The system allows DMX signal extension up to 300m, making it ideal for large-scale installations.

RDM Enabled 8 Way DMX Splitter with Signal Amplification

This 8 way DMX splitter supports RDM (Remote Device Management), enabling bi-directional communication for device discovery, addressing, and configuration. It is fully compatible with ANSI E1.20 compliant RDM devices.

The integrated DMX amplification ensures signal strength is maintained across all outputs, even in extended or complex lighting setups.

Power and Connectivity

  • 12V or 24V DC power input

  • Power indicator LED confirms active operation

  • Feed-through DMX XLR sockets for system integration

DMX Splitter Installation and Termination

The unit is supplied with 8 x 120 Ohm 0.5W terminator resistors. These must be installed between the DMX + and DMX - terminals on the final product in each DMX line to ensure correct signal termination and system stability.

Applications for This DMX Splitter 8 Way System

This DMX splitter 8 way is ideal for:

  • Professional stage lighting systems

  • Architectural lighting installations

  • Entertainment venues

  • Theatres and live events

  • Large-scale LED lighting networks

Support and Technical Advice

For more information on this DMX splitter or any of our professional DMX products, please contact our technical sales team via phone, email, or live chat.

Quick Specs

  • ColourBlack
  • Guarantee Period5 Years
  • IP RatingIP20 Non-Waterproof
  • Input Voltage12V / 24V DC
  • Input SignalDMX512

What's in the box

  • 8 Channel DMX Amplifier / DMX Splitter
  • 8 x 120 Ohm 0.5w Terminator resistor
  • Instruction manual


Technical Specification

  • Product Code: SR2100AMPRDM8CH5
  • Product Packed Gift box
  • Manufacturer LED Technologies
  • LED Strip Brands Sunricher
  • Product Type DMX 512 Decoder
  • Colour Black
  • IP Rating IP20 Non-Waterproof
  • Guarantee Period 5 Years
  • Input Voltage 12V / 24V DC
  • Connectivity DMX 512 protocols
  • Size 164 x 73 x 38mm
  • Dimmable: Yes
  • Voltage Type Constant Voltage
  • Adjustable Dimming Curve & Gamma Value No
  • Adjustable Bit Rate No
  • Adjustable PWM No
  • Relative Humidity 8% to 80%
  • RDM Yes
  • Operating Temp 0-40°C

Product Datasheets

  • pdf Datasheet - SR2100AMPRDM8CH5 Download
  • pdf Sunricher Attestation Of Conformity Download
