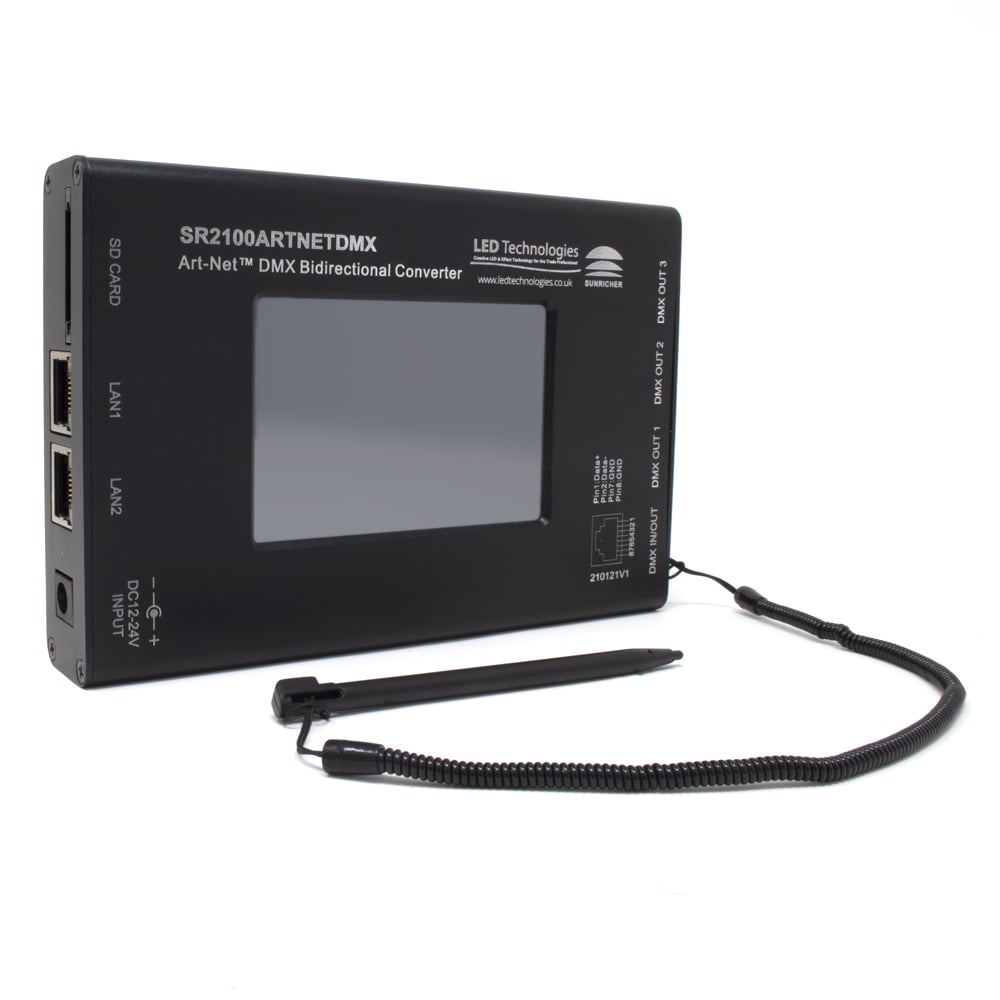

The Art-Net DMX Bidirectional Converter is an Ethernet to DMX adapter with integrated optical DMX splitter and Ethernet switch capability. It has 4 RJ45 DMX out ports, which are all optically isolated, it is compatible with the following
Protocols: DMX512, DMX512-A and Art-Net™. The converter has a 3.5" LCD screen and a touch control pen for easy configuration, it can also be remotely configured and monitored through Art-Net.
The converter can take up to 4 Art-Net universes simultaneously and the 4 RJ45 DMX ports can be assigned to either of the DMX "In port" or to one of the Art-Net universes. The two Ethernet links are 10/100BaseTx connections on RJ45 connector, located on the unit and the 2 x Ethernet ports are through ports that allow daisy chaining of the Art-Net DMX Bidirectional Converter units.
Recorder function allows you to record programs such as colour sequences that are programmed and played by a Art-Net supported PC software or DMX console and save them into an SD card. The playback function allows you to play the recorded programs on the SD card with no controller required. The Task manage function allows you to create up to 10 scheduled tasks which will play the selected recorded programs based on the frequency of day or week.
Each scheduled task allows you to choose up to 10 recorded programs. The play mode can be Single or Loop play and the converter provides a reliable, highly customizable network infrastructure for complex control systems. The converter is compatible with popular Art-Net supported software including Sunlite, DMX workshop, Luminair, Madrix, etc.
