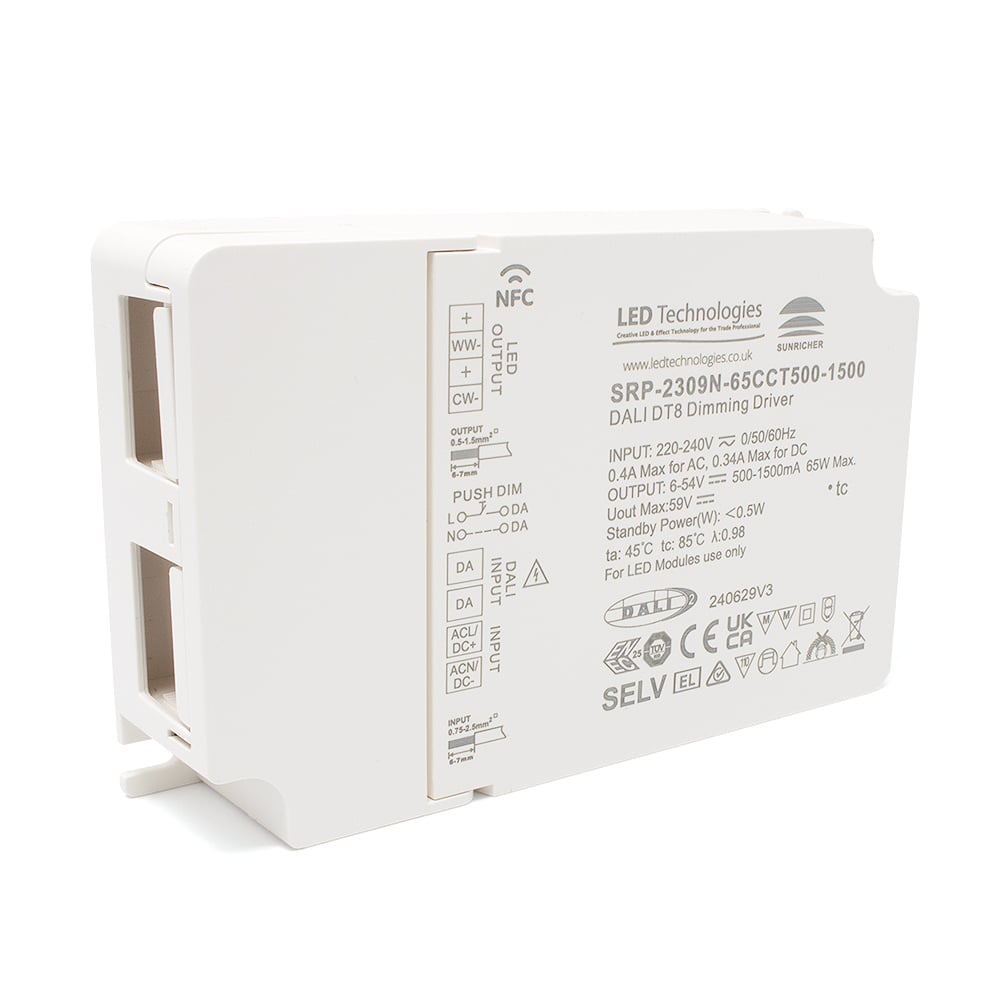

Sunricher DALI DT8 NFC Programmable 65W Constant Current CCT Driver
- DALI DT8 NFC Programmable CCT 65W driver
- 500-1500mA settable by NFC
- Input 220 - 240V AC 50/60Hz
- DALI 2 complient constant current driver
- Universal DALI DT8 compatible
- Short curcuit, over current & temp protection
- High power factor >9.8
- Compact design
*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.
Product Description
This excellent 500mA to 1,500mA constant current DALI 2 DT8 driver is available from our professional range of Sunricher lighting control gear products.
The DALI 2 compatible CCT LED Driver features NFC programming, enabling you to program the driver from your NFC programmer. You can also program the DALI driver from your smartphone and an NFC application.
The DALI Address, Group and Scene functions are all settable using NFC. For safety, short circuits, over-currents and overheat protection are built in to reduce the number of risks. Simply remove the fault condition for the device to reset if a fault occurs.
These constant current LED drivers are designed to work with any DALI 2 unit using DT8 command protocols and will control your CCT constant current, low voltage, LED lighting systems up to 15W.
The driver will provide smooth accurate dimming from 100% down to 0.01%. The driver features an automatic recovery after a short circuit, over-temperature or over-current condition is removed.
Note: This driver is (IP20 rated), suitable for indoor use only.
For more information on this and all our other control solutions please contact our technical sales team by phone, email or via our live chat and WhatsApp on our website.
Quick Specs
- ColourWhite
- Guarantee Period5 Years
- IP RatingIP20 Non-Waterproof
- Input Voltage220V - 240V
- Input SignalDALI 2
What's in the box
- Sunricher DALI DT8 NFC Programmable 65W Constant Current CCT Driver
- Data Sheet
Technical Specification
- Product Code: SRP2309N65CCT5001500
- Product Packed Gift box
- Manufacturer LED Technologies
- LED Strip Brands Sunricher
- Product Type Controller / Driver
- Colour White
- IP Rating IP20 Non-Waterproof
- Guarantee Period 5 Years
- Wattage 65W
- Input Voltage 220V - 240V
- Output Voltage 6-54V (Max 60V)
- Connectivity DALI DT8 Protocols
- Size 123.9mm x 78.8mm x30mm
- Dimmable: Yes
- Power Factor > 0.98
- Voltage Type Constant Current
- Adjustable Bit Rate No
- Adjustable PWM No
- RDM Yes
- Input Voltage Range 220V - 240V AC
- Operating Temp -20~50°C
Product Datasheets
- Datasheet - SRP2309N65CCT5001500 Download
