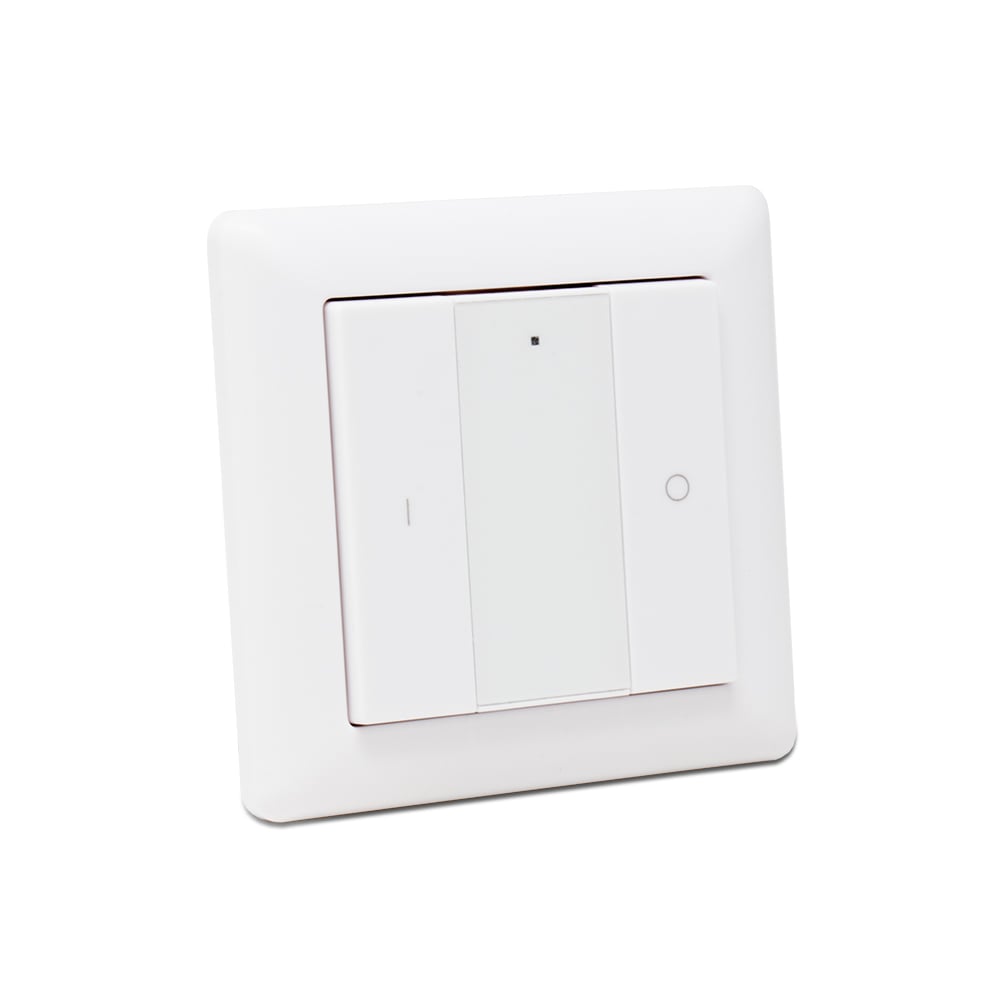

Sunricher DALI DT6 Single Colour Wall Panel

Product Code: SR2422K2DIMG1
  • DALI DT6 Single colour wall panel
  • DALI Bus powered
  • Can control 1 x DALI group of devices
  • Controls all DALI devices on the circuit
  • Compatible with DALI DT6 colour
  • Rear rotary switch for assigning groups
  • Works with all available DALI products
  • Back light indicator mimics light setting
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

This ultra slim DALI DT6 single colour, push button wall panel can be fixed almost anywhere using the fixing kit provided.  The wall panel has a rotary controller on the back which enables you to select one of 15 x DALI groups plus Group Broadcast.  Simply connect to the DALI BUS line for power / control signals, select the DALI group that you would like to control or for DALI Group control select “0” and you will then have full “On / Off” and dimming control over the selected DALI group of products.

Power on and off is achieved by momentarily pressing the separate on / off switches and to dim up or down, simply press and hold the appropriate button until the desired level is achieved.

Quick Specs

What's in the box?

  • DALI DT6 Push Button Wall Panel
  • Fixing Kit
  • Instruction Manual
Product Code: SR2422K2DIMG1
Product Packed Gift box
Manufacturer LED Technologies
Product Type Controller
IP Rating IP20 Non-Waterproof
Guarantee Period 5 Years
Current 4mA
Input Voltage
This is the required amount of volts needed to power the product.
DALI Bus Powered
Connectivity DALI DT6 Protocols
PCB Weight Not Applicable
Size 71.2 x 71.2 x 13.6mm
CRI Rating (greater than) CRI >80
Dimmable: Yes
LED Type Not Applicable
Average LED life Hrs 30,000
Colour Temperature Variation IP20 No
Power Factor > Not Applicable
Continuous Operation Not suitable for 24/7 continuous use
Relative Humidity 8% to 80%
Operating Temp 0-40°C
Datasheet - SR2422K2DIMG1 Download
