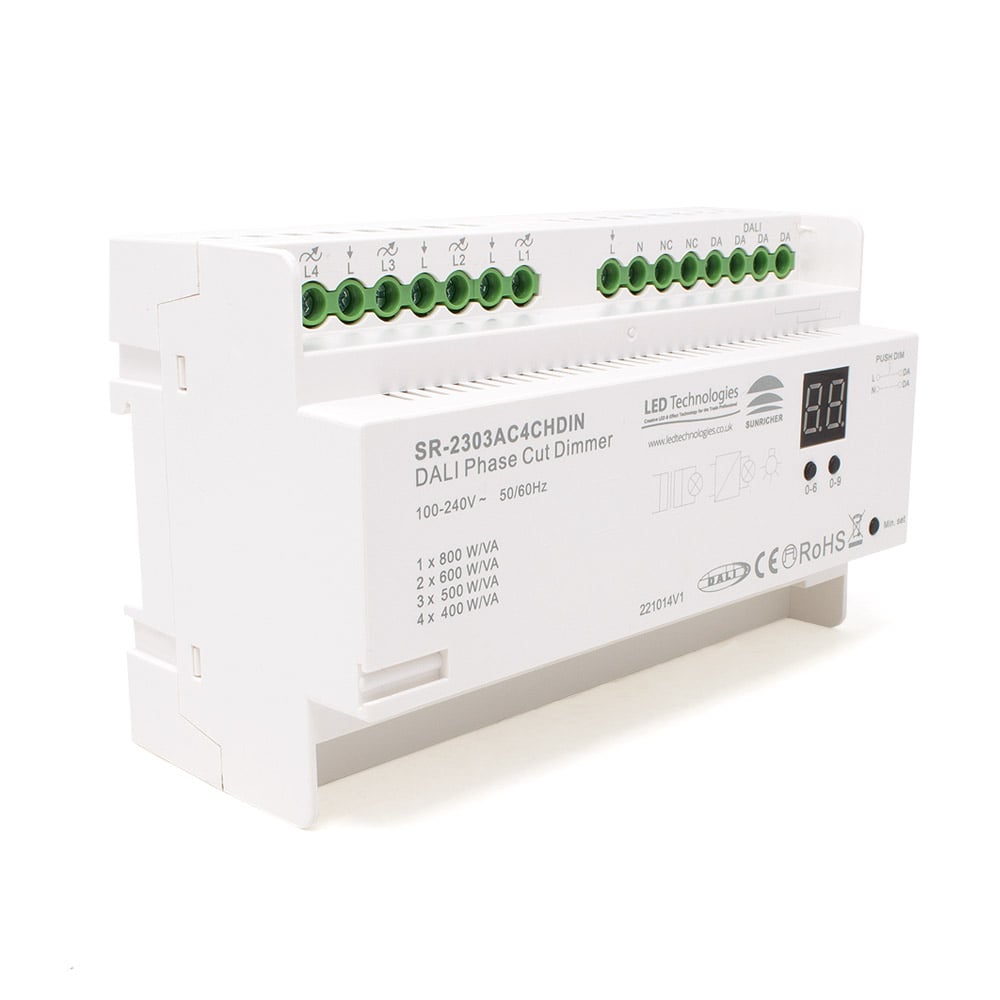

Sunricher DALI DT6 4 Channel Phase Cut DIN Mountable Dimmer

Product Code: SR2303AC4CHDIN

Four channel DALI DT6 Dimmer
Supports resistive & capacitive loads
Compatible with DALI DT6 protocols
Trailing Edge dimming
Can control all channels together or separately
DIN Rail mountable
For 100v - 240v AC products
Digital DALI address indicator

View full product details and specification

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Currently in Stock

Next day delivery available*

In stock

Speak with an Expert

Product Details

Product Description

The SR2303AC4CHDIN from Sunricher is a Four Channel, DALI DT6 Phase Cut Dimmer and for ease of installation, the dimmer is DIN Rail mountable. This feature rich product will control your mains powered, single colour lighting products with both a resistive and a capacitive load enabling it to be used with mains powered LED Lighting, LED Drivers, incandescent lamps and low voltage halogen lamps with electronic transformers. The dimmer can be set as 1, 2, 3, or 4 channels so that it can control all the channels simultaneously or separately.

The dimmer supports DALI DT6 protocols and is compliant with all DALI 2 products on the market, the DALI address can be set manually using the menu buttons and digital display or automatically from the DALI Master. The unit supports an input voltage of 100v - 240v AC and it also has a "Push Dim" facility. The factory-set dimming level is from 1% up to 100% however, the minimum brightness level can be set as required to accommodate lamps that flicker when dimmed too low. Once the minimum brightness has been set, the unit will not dim any lower that that value on all four channels.

Note: This unit is a Reverse Phase (trailing edge) dimmer so it is important to check that the products that the dimmer is controlling support Reverse Phase Dimming.

Quick Specs

What's in the box?

Four channel DALI DT6 Phase Cut DIN Mountable Dimmer
Instruction manual

Technical Specification

Product Code:	SR2303AC4CHDIN
Product Packed	Gift box
Manufacturer	LED Technologies
Product Type	Dimmer
Colour	White
IP Rating	IP20 Non-Waterproof
Guarantee Period The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.	5 Years
Current	4 x 1.8A
Input Voltage This is the required amount of volts needed to power the product.	100V - 240v AC / DALI bus
Output Voltage	100V - 240V AC
Connectivity	DALI DT6 Protocols
Size	145.4 x 90 x 66.4mm
Dimmable:	Yes
Voltage Type	Mains Voltage
Adjustable Dimming Curve & Gamma Value	No
Adjustable Bit Rate	No
Adjustable PWM	No
