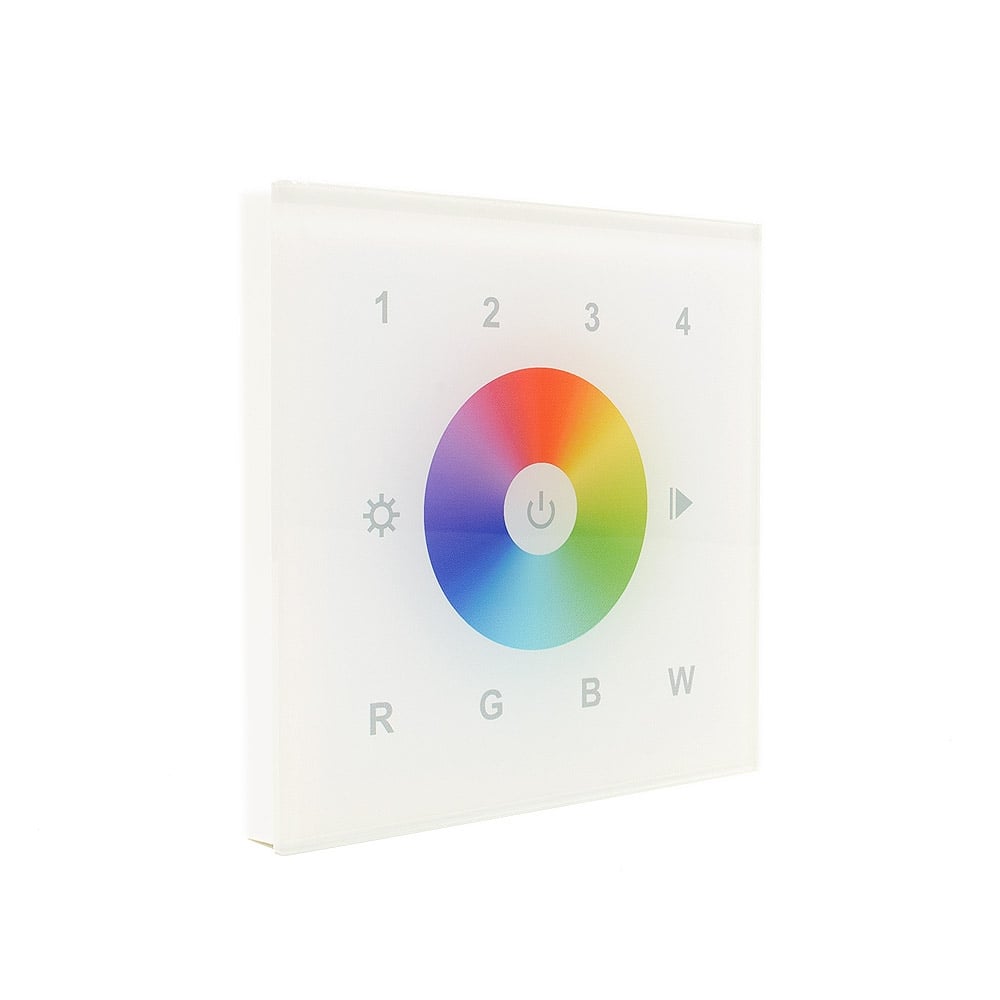

Sunricher Zigbee 4 Group RGBW Wall Panel White (Mains powered)

Product Code: SRZG9001T4RGBWWH
  • Uses latest Zigbee 3.0 protocols
  • Works with all Zigbee devices & hubs
  • Supports "find & bind" mode
  • Enables "touch-link" commissioning
  • Extends Zigbee network
  • Supports four groups
  • Easy to connect to Zigbee network
  • Instant white mixed with RGB colours
CRI 80
5 Year Guarantee
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
IP Rating 20
ZigBee
View full product details and specification
main product photo
Currently in Stock
Next day delivery available*
In stock
Speak with an Expert
Speak with an Expert

Product Description

This Zigbee RGBW LED wall panel from our professional range of Sunricher control products features a smart white glass touch sensitive front panel, it is perfect for controlling up to four groups of your lighting products as part of your ZigBee home automation system.

Zigbee is a wireless control protocol that forms a MESH network of products that all communicate with each so that the wireless signal can find the most efficient route around the network.

Using the high-quality touch panel, this RGBW controller features:

  • Easy switching (On/Off)
  • Smooth colour selection
  • 4 zone control
  • Red, Green, Blue and White individual channel control
  • Smooth brightness control
  • Pre-programmed dynamic modes
  • Find & Bind Mode
  • Touch Link

The Zigbee system supports "touch-link" commissioning and "find and bind" mode to easily pair with other Zigbee lighting devices after being added to the same Zigbee network.

The wall panel requires a 100V or 240V AC mains power supply and is the perfect addition to your ZigBee home automation system.

For more information on this and our other professional control solutions please contact our technical sales team by phone, email or through our live chat on our website.

Quick Specs

CRI 80
5 Year Guarantee
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
IP Rating 20
ZigBee

What's in the box?

  • Zigbee RGBW Wall Panel (White)
  • Fixing kit
  • Instruction manual

Product Code: SRZG9001T4RGBWWH
Product Packed Gift box
Manufacturer LED Technologies
Product Type Controller
Colour White
IP Rating IP20 Non-Waterproof
Guarantee Period
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
5 Years
Input Voltage
This is the required amount of volts needed to power the product.
100V - 240V AC
Connectivity ZIGBEE protocols
PCB Weight Not Applicable
Size 86 x 86 x 29.1mm
CRI Rating (greater than) CRI >80
Dimmable: Yes
LED Type Not Applicable
Average LED life Hrs 30,000
Power Factor > Not Applicable
Wireless Range Up to 30 metres
Continuous Operation Not suitable for 24/7 continuous use
Voltage Type Mains Voltage
Relative Humidity 8% to 80%
Operation Frequency 2.4GHz
Operating Temp 0-40°C
Pre-Programmed Effects List Download
Datasheet - SRZG9001T4RGBWWH Download
