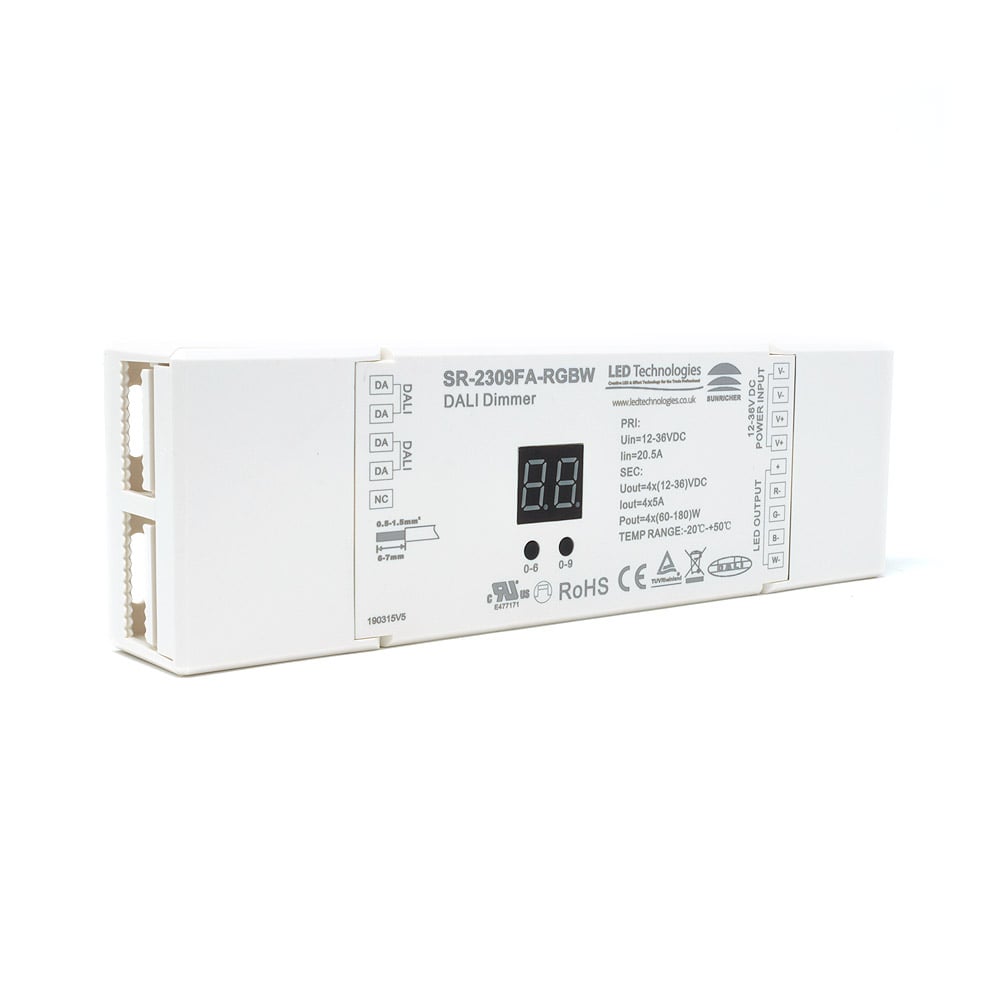

Sunricher DALI DT8 RGBW Four Channel Dimmer

- RGBW DALI DT8 Dimmer
- Constant voltage PWM controller
- Compatible with DALI DT8 protocols
- For RGBW LED lighting products
- Enables dimming & colour adjustment
- Configurable by DALI USB interface
- For 12v - 36v RGBW LED products
- Digital DALI address indicator
*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Product Description
This DALI device is available from our extensive range of DALI lighting control systems from our Sunricher control device products. DALI (stands for digital addressable lighting interface) is an LED lighting management system with many control options for your lighting systems.
This four-channel constant voltage dimmer complies with the latest IEC 62386-209:2011 standards. This DALI dimmer also supports all DALI DT8 device commands.
Colour control is as defined in the DALI specification for device type 8.
All the RGBW output channels of this device are controlled by a single DALI address. It is compatible with universal DALI master controllers that support DT8 commands. DALI DT8 commands enable easy RGBW colour adjustment.
The DALI address can be manually assigned and displayed using the user interface and digital display if required. You can also configure the dimmer using the DALI system software tool and DALI USB interface.
Browse our entire range of DALI control devices including DALI LED Drivers, application controllers and more. DALI and DALI-2 are DALI open standards. All our DALI LED controllers are DALI 2 lighting control standards, which is the latest version of the DALI open protocol.
Quick Specs
- ColourWhite
- Guarantee Period5 Years
- IP RatingIP20 Non-Waterproof
- Input Voltage12V / 24V / 36V DC
What's in the box
- Four Channel DALI DT8 Dimmer
- Instruction manual
Technical Specification
- Product Code: SR2309FARGBW
- Product Packed Gift box
- Manufacturer LED Technologies
- LED Strip Brands Sunricher
- Product Type Dimmer
- Colour White
- IP Rating IP20 Non-Waterproof
- Guarantee Period 5 Years
- Wattage 4 x 60W - 180W
- Current 4 x 5A
- Input Voltage 12V / 24V / 36V DC
- Output Voltage 12V / 24V / 36V DC
- Connectivity DALI DT8 Protocols
- Size 170 x 53.4 x 28mm
- Dimmable: Yes
- Voltage Type Constant Voltage
- Relative Humidity 8% to 80%
- Operating Temp -20 to +45
Product Datasheets
- Datasheet - SR-2309FARGBW-SR2309FA3RGBW-SR2309FA7 Download
