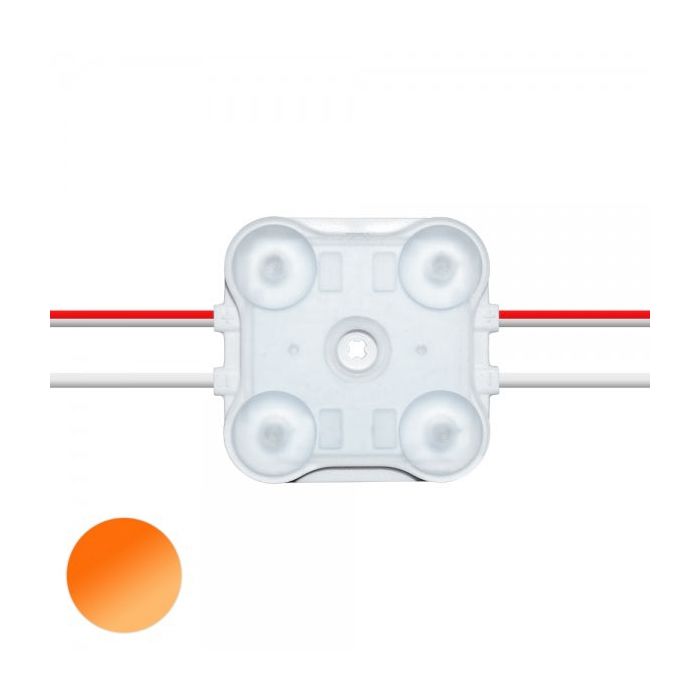

Orange LED Module 0.72W Pack of 20

Product Code: 100.739

Quad 605-610nm Orange LED Module
4,440mm Overall Length
42 x 42 x 10mm In Size
IP67 Rated
221.5mm Distance Between Modules
3 Year warranty
Pack of 20
Ideal for Lightboxes

View full product details and specification

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Currently in Stock

Next day delivery available*

In stock

Speak with an Expert

Product Details

Product Description

Our high-quality orange LED light modules are the perfect lighting solution for elegant lightboxes or backlighting. They are incredibly versatile that will make any lighting project effortless. Featuring a rich orange with a colour temperature of 605-610nm, they provide an excellent lumen rating of 33.33LM per LED.

This quad-orange LED backlight module is a compact fixture with a size of 42mm by 42mm. Supplied in 4,440mm lengths, there are 20 modules situated 221.5mm apart (From the centre of each module). Connected with a 2-cord cable that can be cut to length between each module.

Furthermore, they have a wide beam angle of 160 degrees that will cast light over a large space. This is ideal for creating a halo of light when installed as backlighting, such as for channel lettering.

Our waterproof LED modules are injection moulded, achieving an IP67 rating. This makes them resistant to water and dust, vital for outdoor lighting and extremely wet environments such as pools. Read “LED Product Filters Explained” for more information on IP ratings.

Each orange module has an adhesive backing that makes installations effortless, Simply peel back the protective paper and adhere them to the required surface. To power the waterproof LED light modules, a 12v driver is required. For effortless control, have a look at our Sunricher Control systems.

Please get in touch with our sales team for more information on this product and control options. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Modules through our website or contact our technical sales team.

Quick Specs

What's in the box?

Orange LED Module 0.72W Pack of 20

Technical Specification

Product Code:	100.739
Product Packed	Poly / Anti static Bag
Manufacturer	LED Technologies
Product Type	Module
Colour	Orange
IP Rating	IP67 Waterproof
Colour Temperature Colour Temperature refers to the coolness or warmth of the light produced by the LED's indicated in degrees Kelvin.	605-610nm
Guarantee Period The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.	3 Years
Wattage	0.72W
Input Voltage This is the required amount of volts needed to power the product.	12V DC
Size	42 x 42 x 10mm
Reel Length	4,440mm (End to End)
Beam Angle:	160 degree
LED Spacing	221.5mm (Distance between centre of Modules) 167mm (Wire length between Modules)
Power Consumption:	0.72w
Lumens Per LED	33.33lm/W
Dimmable:	Yes

Cut Intervals:	The wires between each Module
LED Type	Led chip 2835
Continuous run You can run longer lengths but this may result in voltage drop causing reduced brightness and longevity - please contact our Technical Team for advice before installation - 01260 540014	Max connection number 20 pcs
Average LED life Hrs	50,000
Peelable Back	3M PE Foam Pad
Bin / Step	MacAdam 4
Voltage Type	Constant Voltage
Base Type	180mm Tails at both ends
Luminous Flux - Orange	24LM per Module
