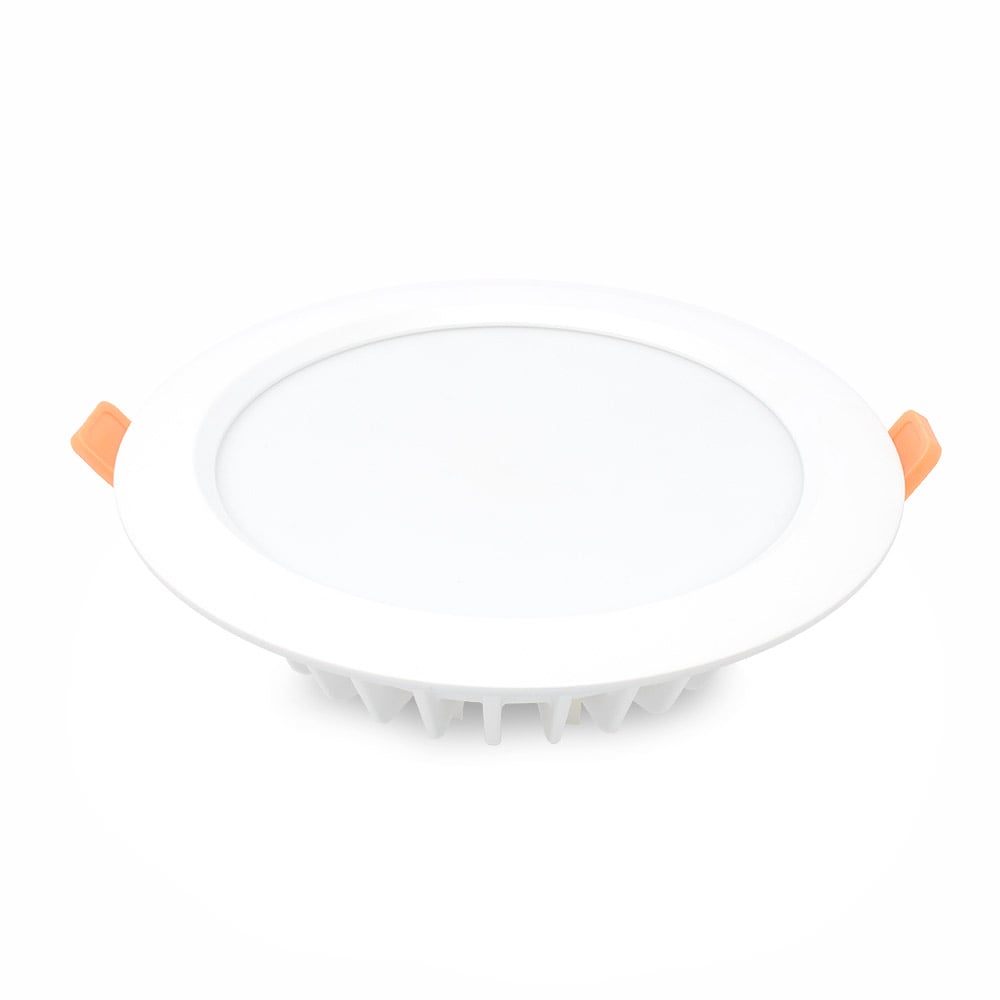

FUT069 MiBoxer 15W RGB+CCT AC100-240V LED Downlight

Product Code: FUT069
  • RGB+CCT Downlight
  • 15W / AC 100-240V
  • Colour temperature 2700K~6500K
  • Dimmable
  • Auto synchronization
  • Home automation compatibility
  • Cut-out diameter: ø175~180mm
  • 5 Year Guarantee
RGB / CW & WW
100V - 240V AC
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Sign In/Register to view Prices

Product Description

This smart colour-changing LED round recessed downlight is available from our stunning range of Mi-light products. Providing a bright lumen rating of 1200LM, this is the perfect lighting solution for functional or ambient lighting.



Our LED round downlight runs at 15w, emitting an intense beam of colour. With the ability to produce over 16 million colours, this round recessed LED downlight enables complete control over the lighting effect including colour temperature control between cool white (6500K) to warm white (2700K) and brightness control.



Our MiLight MiBoxer round downlights are quality light solutions designed to be long-lasting and dependable. With a beautiful 120-degree beam angle, the downlight will cast a flood of light over a large space, ideal for both commercial and domestic projects.



Installation

This round LED downlight has an amazing IP54 IP rating and is therefore splashproof. This is perfect for lighting in kitchens or bathrooms where moisture may come into contact with the lighting.

This downlight has a diameter of 190mm and a height of 50mm. A void of 175mm and a depth of 180mm is required to install this round downlight. Simply place the LED driver and cables into the void, then push the two spring clips and anchor them to the ceiling.



The Mi-Light control system features “Signal Transmitting & Mode sync”, which enables each LED light to re-transmit a control signal. This creates a MESH network where all downlights in the network will synchronise together wirelessly.

Controlling Mi-light downlights is simple from a single 2.4G RF remote control Mi-Light Handset or Mi-Light Wall panel.



For more information on this product and control options, please contact our sales team. Simply Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Downlights through our website or contact our technical sales team.

Mi-Light MiBoxer LED Downlight FUT069

Quick Specs

  • CRI Rating (greater than)CRI >80
  • Beam Angle:120 degree
  • ColourRGB / CW & WW
  • Guarantee Period5 Years
  • IP RatingIP54 Splashproof
  • Input Voltage100V - 240V AC

What's in the box

  • LED Downlight
  • Integrated driver
  • Instruction manual

Technical Specification

  • Product Code: FUT069
  • Product Packed Gift box
  • Manufacturer Mi-Light / MiBoxer
  • LED Strip Brands Mi-Light MiBoxer
  • Product Type Downlight
  • Colour RGB / CW & WW
  • IP Rating IP54 Splashproof
  • Colour Temperature 2700 - 6500K
  • Guarantee Period 5 Years
  • Wattage 15W
  • Input Voltage 100V - 240V AC
  • Connectivity RF
  • Size ø190 X 50mm Height
  • Beam Angle: 120 degree
  • CRI Rating (greater than) CRI >80
  • Dimmable: Yes
  • Average LED life Hrs 50,000
  • Power Factor > 0.5
  • Wireless Range Up to 30 metres
  • Operation Frequency 2.4GHz
  • Operating Temp -20~60°C
  • Luminous Flux: 1200LM
  • Light Efficiency: 80LM/W
  • Smart Synchronisation Version 2.0

Product Datasheets

  • pdf Datasheet - FUT069 Download
  • pdf MiBoxer Distributor Authentication Notice Download
