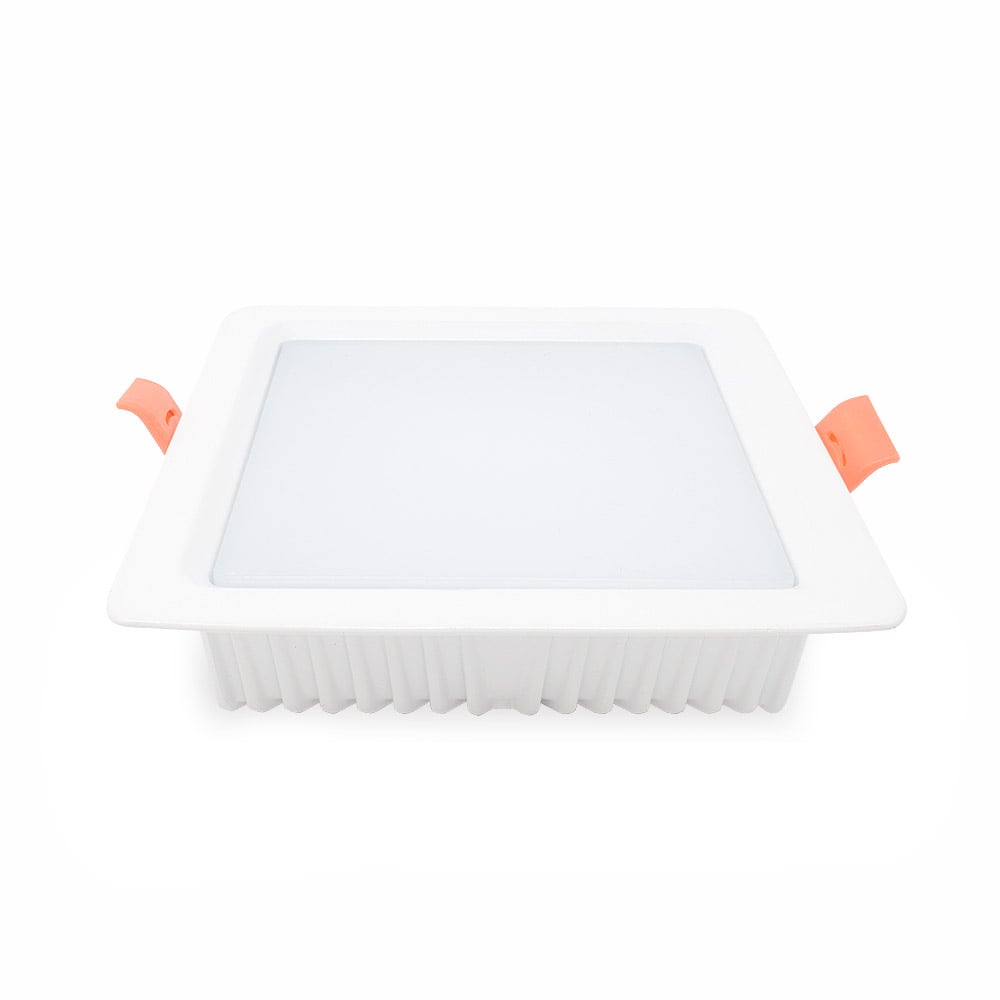

FUT064 MiBoxer 9W RGB+CCT AC100-240V Square LED Downlight

Product Code: FUT064
  • RGB+CCT Downlight
  • 9W / AC 100-240V
  • Colour temperature 2700K~6500K
  • Dimmable
  • Auto synchronization
  • Home automation compatibility
  • Cut-out diameter: 105mm X 105mm
  • 5 Year Guarantee
RGB / CW & WW
100V - 240V AC
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Sign In/Register to view Prices

Product Description

This colour-changing square recessed LED downlight is available from our stunning range of Mi-Light products. Providing a lumen rating of 720LM, this is the perfect lighting solution for unique functional or ambient lighting.



This LED square downlight runs at 9W, emitting a beautiful beam of colour. With the ability to produce over 16 million colours, this anti-glare downlight enables full control over the lighting effect including colour temperature control between cool white (6500K) to warm white (2700K).



MiLight MiBoxer square recessed downlights are made from quality components ensuring a durable and reliable product. With a wide beam angle of 120 degrees, this LED square downlight will create a flood of light over a large space. Perfect for both commercial and domestic lighting projects.



Installation

This square LED downlight is designed for interior design due to its IP20 non-waterproof rating.

This LED square downlight has a length and width of 120mm with a 35mm height. A void of 105mm by 105mm is required to install this downlight. Simply place the LED driver and cables into the void, then push the two spring clips and anchor them to the ceiling.



The Mi-Light control system features “Signal Transmitting & Mode sync”, which enables each LED light to re-transmit a control signal. This creates a MESH network where all downlights in the network will synchronise together wirelessly.

Controlling Mi-light downlights is simple from a single 2.4G RF remote control Mi-Light Handset or Mi-Light Wall panel or the MiLight app.



For more information on this product and control options, please contact our sales team. Simply Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Downlights through our website or contact our technical sales team.



Mi-Light MiBoxer LED Downlight FUT064

Quick Specs

  • CRI Rating (greater than)CRI >80
  • Beam Angle:120 degree
  • ColourRGB / CW & WW
  • Guarantee Period5 Years
  • IP RatingIP20 Non-Waterproof
  • Input Voltage100V - 240V AC

What's in the box

  • Square LED Downlight
  • Integrated driver
  • Instruction manual

Technical Specification

  • Product Code: FUT064
  • Product Packed Gift box
  • Manufacturer Mi-Light / MiBoxer
  • LED Strip Brands Mi-Light MiBoxer
  • Product Type Downlight
  • Colour RGB / CW & WW
  • IP Rating IP20 Non-Waterproof
  • Colour Temperature 2700 - 6500K
  • Guarantee Period 5 Years
  • Wattage 9W
  • Input Voltage 100V - 240V AC
  • Connectivity RF
  • Size 120mm X 120mm X 35mm Height
  • Beam Angle: 120 degree
  • CRI Rating (greater than) CRI >80
  • Dimmable: Yes
  • Average LED life Hrs 50,000
  • Power Factor > 0.5
  • Wireless Range Up to 30 metres
  • Operation Frequency 2.4GHz
  • Operating Temp -20~60°C
  • Luminous Flux: 720LM
  • Light Efficiency: 80LM/W
  • Smart Synchronisation Version 2.0

Product Datasheets

  • pdf Datasheet - FUT064 Download
  • pdf MiBoxer Distributor Authentication Notice Download
