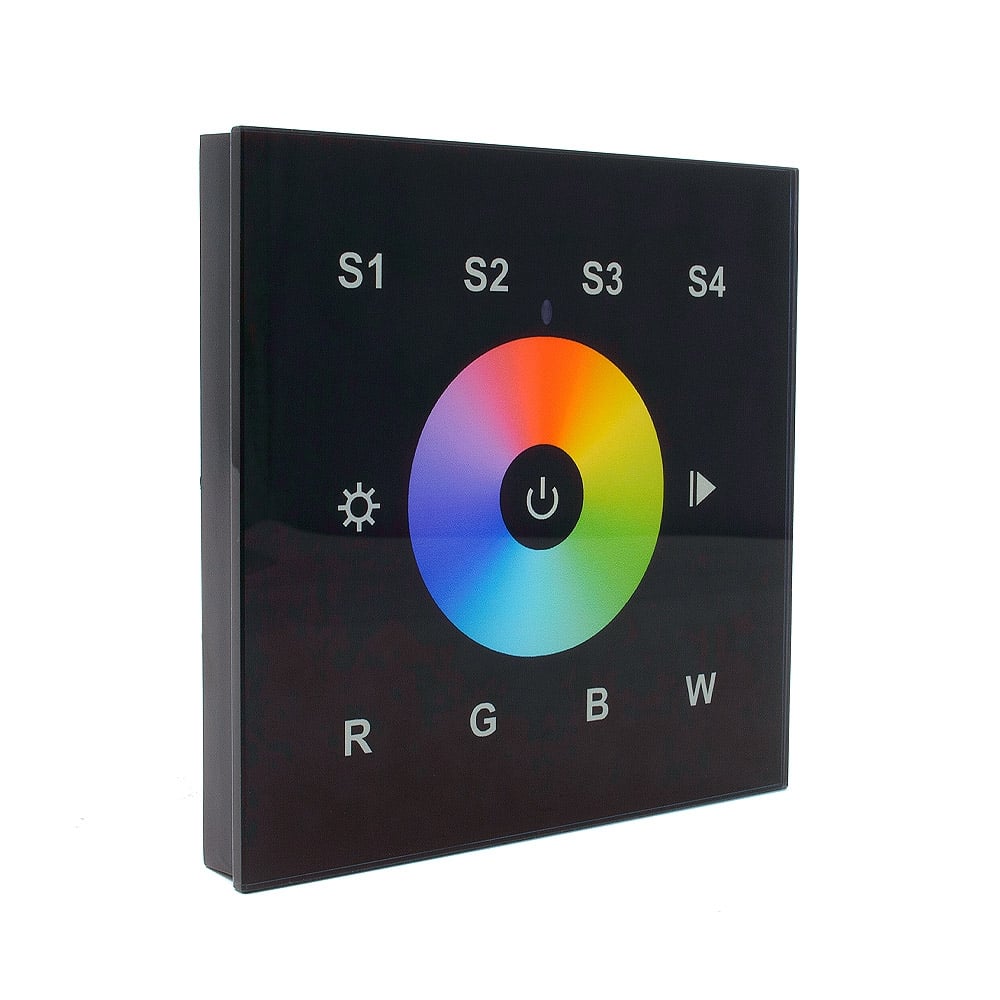

Sunricher RF RGBW 4 x Scene RF Wall Panel Black (Low voltage)
- RGBW colour single zone RF wall panel
- Four programmable scenes
- Ten built in adjustable programs
- 12v or 24v Connection only required
- Smooth RGBW adjustment and dimming
- Up to 20m range
- Fixing Kit supplied
- Stylish black glass panel design
*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.
Product Description
This RGBW RF controller is available from our stunning range of Sunricher control gear. Featuring fully touch-sensitive controls, this has an elegant black glass finish. Perfect for controlling RGBW LED lighting effortlessly from up to 20m away from the receiver.
Radio Frequency (RF) is an easy and lighting control system that operates using radio waves. It is often the first choice for controlling a range of LED products including LED strip lights.
Using high-quality touch-sensitive controls, this LED RF RGBW controller features:
- Easy switching (On/Off)
- Colour wheel selection
- Red, Green Blue and White intensity control
- Smooth brightness control
- 4 programmable scenes
- 10 pre-programmed dynamic modes
This RF RGBW LED control wall panel requires a low-voltage power supply to power. Wire according to the instructions on the datasheet and install it into a UK wall box. Then pair the RGBW wall panel to a 4-channel LED receiver.
For more information on this product and control options, please contact our sales team. Call, email or use our online live chat to talk to our technical sales team.
Shop our range of LED Controls through our website or contact our technical sales team.
Quick Specs
- CRI Rating (greater than)CRI >80
- ColourBlack
- Guarantee Period5 Years
- IP RatingIP20 Non-Waterproof
- Colour Temperature VariationIP20 No
- Input Voltage12V / 24V DC
What's in the box
- RGBW colour changing RF wall panel
- Fixing kit
- Instruction manual
Technical Specification
- Product Code: SR2820B
- Product Packed Gift box
- Manufacturer LED Technologies
- LED Strip Brands Sunricher
- Product Type Controller
- Colour Black
- IP Rating IP20 Non-Waterproof
- Guarantee Period 5 Years
- Input Voltage 12V / 24V DC
- Connectivity RF
- PCB Weight Not Applicable
- Size 86 x 86 x 29.1mm
- CRI Rating (greater than) CRI >80
- Dimmable: Yes
- LED Type Not Applicable
- Average LED life Hrs 30,000
- Power Factor > Not Applicable
- Wireless Range Up to 20 metres
- Continuous Operation Not suitable for 24/7 continuous use
- Voltage Type Low Voltage
- Relative Humidity 8% to 80%
- Operation Frequency 869.5 / 434MHz
- Operating Temp 0-40°C
