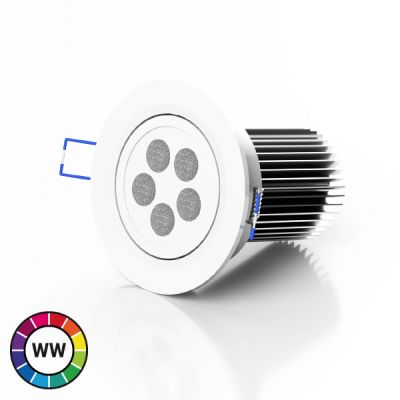

LEDTech CCT Adustable LED Downlighter - 6W

Product Code: 101.182
  • CCT Adjustable (3000-6500k)
  • 6W
  • Bright vivid whites
  • Commercial & domestic installations
  • Ceiling mountable (55mm cut out)
  • Tiltable Head
  • Connect up to 25 in one line
  • RF compatible
Cool / Warm White
IP20 No
24V DC
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Already have an Account? - Sign In No Account? - Create a Trade Account →

Product Description

This smart dual-colour LED downlight is available from our excellent LEDTech range. Featuring the ability to switch between warm white and cool white, it is designed to be ceiling mounted with a 55mm void.



This colour temperature-adjustable LED downlight features colour temperatures between 3000-6500k. Easily switch between the integrated inviting warm white LEDs and bright cool white LED light, enhancing the mood lighting of any room. It has an incredible CRI that is greater than 80 ensuring that pure white light is cast.

Furthermore, these downlights have a lumen rating of 200LM for WW and 220LM for CW with a 60-degree beam angle. Therefore, this LED colour temperature-adjustable downlight will create a narrow but powerful beam of light, perfect for spotlighting or general lighting.



With a low current draw of just over 0.3A, it is possible to link a number of these units together from one controller, minimizing wiring.

The colour temperature adjustable downlights are designed to be ceiling lights but they are suitable for any installation that requires a recessed lighting source. Due to their compact size, they also do not need a deep void.



For more information on this product, don't hesitate to get in touch with our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Downlights through our website or contact our technical sales team.

Quick Specs

  • CRI Rating (greater than)CRI >80
  • Beam Angle:60 degree
  • BrightnessHigh Brightness
  • ColourCool / Warm White
  • Guarantee Period3 Years
  • IP RatingIP20 Non-Waterproof
  • Colour Temperature VariationIP20 No
  • Input Voltage24V DC

Technical Specification

  • Product Code: 101.182
  • Product Packed Box
  • Manufacturer LED Technologies
  • Product Type Downlight
  • Colour Cool / Warm White
  • IP Rating IP20 Non-Waterproof
  • Colour Temperature 3000-6500K
  • Guarantee Period 3 Years
  • Current 550mA/M
  • Input Voltage 24V DC
  • Output Voltage 24V DC
  • Brightness High Brightness
  • PCB Weight Not Applicable
  • Size 68mm dia x 55mm height
  • Beam Angle: 60 degree
  • Power Consumption: 6w
  • Lumens Per LED WW=200lm CW=220lm
  • CRI Rating (greater than) CRI >80
  • Dimmable: Yes
  • LED Quantity 2 x 3w CCT LED
  • LED Type SMD2216
  • Average LED life Hrs 30,000
  • Power Factor > Not Applicable
  • Equivalent to: 50 / 60w
  • Continuous Operation Not suitable for 24/7 continuous use
  • Base Type Tails

Product Datasheets

  • pdf Datasheet - 101.182 Download
  • pdf 6w CCT Downlighter wiring diagram Download
