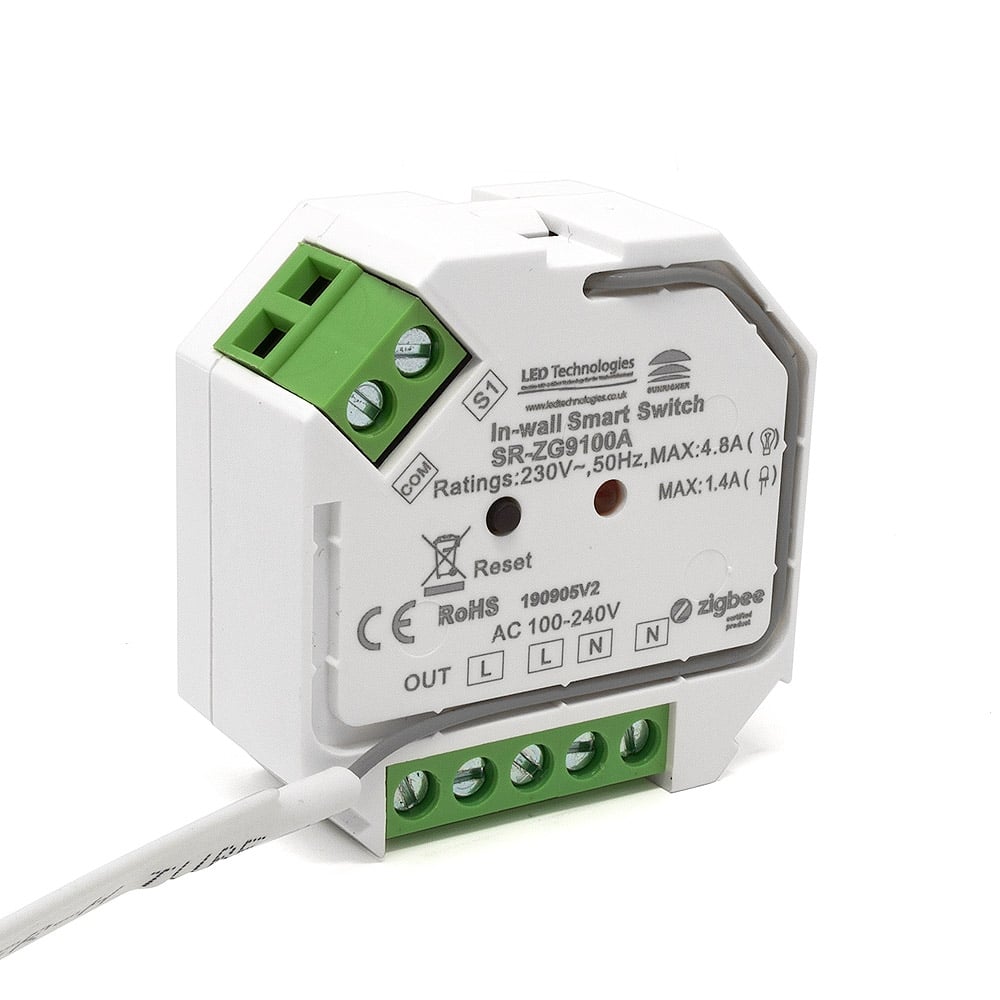

Sunricher ZigBee Compact AC Switch (No Neutral)

Product Code: SRZG9100A

ZigBee AC in-wall mountable switch
Works with most ZigBee devices
Enables "touch-link" commissioning
No neutral wire required
Supports "find & bind" mode
Extends ZigBee network
Works with resistive & capacitive loads
Supports loads up to 1.5A

View full product details and specification

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Currently in Stock

Next day delivery available*

In stock

Speak with an Expert

Product Details

Product Description

This compact Zigbee AC Switch is designed to be controlled with other Zigbee devices to switch On or Off a mains powered product. It will work with both resistive and capacitive loads.

The ZigBee smart switch does not require a neutral connection and it can be integrated and operated as part of a ZigBee MESH network by most ZigBee certified devices. All the nodes within the ZigBee network will act as a repeater to increase the range of the ZigBee network.

This ZigBee switch is compatible with mains-powered lighting, including halogen and incandescent lamps. It can also control low voltage lighting through by switching the mains power to a non-dimmable LED Driver.

This is the perfect solution for professional installations as it does not require a neutral wire connection so it can easily be installed into a standard light switch enclosure without re-wiring.

For more information on this product or any of our professional control products, please contact our technical sales team by phone, email or via live chat on our website.

Quick Specs

What's in the box?

ZigBee In-Wall Mountable AC Switch
Instruction manual

Technical Specification

Product Code:	SRZG9100A
Product Packed	Gift box
Manufacturer	LED Technologies
Product Type	Controller / Receiver
Colour	White
IP Rating	IP20 Non-Waterproof
Guarantee Period The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.	5 Years
Current	1.5A
Input Voltage This is the required amount of volts needed to power the product.	100V - 240V AC
Output Voltage	100V - 240V AC
Connectivity	ZIGBEE protocols
Size	45.5 x 45 x 20.3mm
Dimmable:	No
Wireless Range	Up to 30 metres
Voltage Type	Mains Voltage
Relative Humidity	8% to 80%
Operation Frequency	2.4GHz
