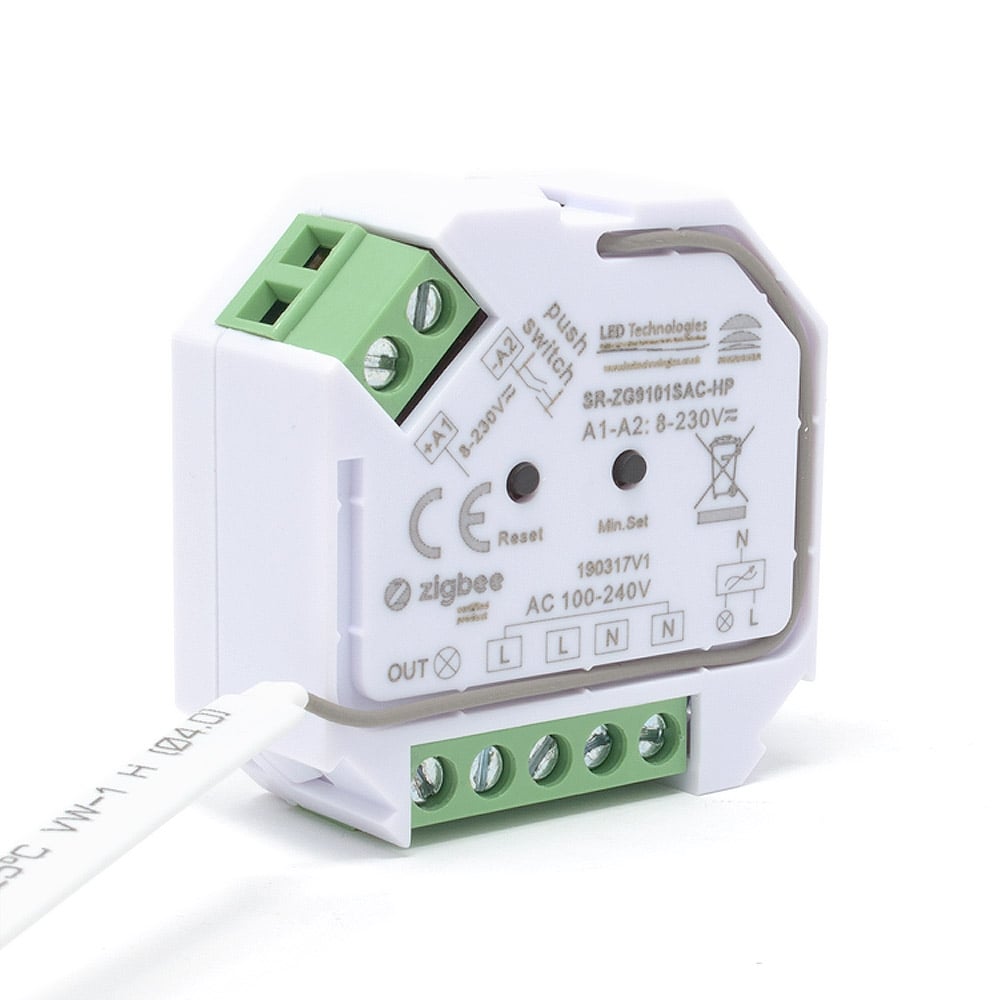

Sunricher ZigBee In-Wall Mountable AC Phase Cut Dimmer

Product Code: SRZG9101SACHP

ZigBee AC in-wall mountable dimmer
Works with most ZigBee devices
Enables "touch-link" commissioning
Easy to connect to ZigBee network
Supports "find & bind" mode
Extends ZigBee network
Works with resistive & capacitive loads
Supports loads up to 1.5A

View full product details and specification

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Currently in Stock

Next day delivery available*

In stock

Speak with an Expert

Product Details

Product Description

This slim, compact ZigBee Phase Cut dimmer is available from our range of Sunricher professional lighting control products.

The ZigBee dimmer is ideal for domestic and commercial applications, for dimming and switching your mains power products and is compatible with Resistive and capacitive loads so it can dim mains powered filament lamps, halogen lamps, LED dimmable drivers and mains LED lamps.

The ZigBee phase cut dimmer is designed to be integrated into your ZigBee home automation network and it is compatible with many different types of ZigBee home automation hubs and controllers.

The ZigBee dimmer supports "touch-link" commissioning and "find and bind" mode. This enables you to easily pair the dimmer with other devices after it has been added to the same ZigBee network.

For more information on this and our other professional control products please call our technical sales team by phone, email or via live chat on our website.

Quick Specs

What's in the box?

ZigBee In-Wall Mountable AC Dimmer
Instruction manual

Technical Specification

Product Code:	SRZG9101SACHP
Product Packed	Gift box
Manufacturer	LED Technologies
Product Type	Controller / Receiver
Colour	White
IP Rating	IP20 Non-Waterproof
Guarantee Period The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.	5 Years
Current	1.5A
Input Voltage This is the required amount of volts needed to power the product.	100V - 240V AC
Output Voltage	100V - 240V AC
Connectivity	ZIGBEE protocols
PCB Weight	Not Applicable
Size	45.5 x 45 x 20.3mm
CRI Rating (greater than)	CRI >80
Dimmable:	Yes
LED Type	Not Applicable
Average LED life Hrs	30,000

Power Factor >	Not Applicable
Wireless Range	Up to 30 metres
Continuous Operation	Not suitable for 24/7 continuous use
Relative Humidity	8% to 80%
Operation Frequency	2.4GHz
Operating Temp	0-40°C
