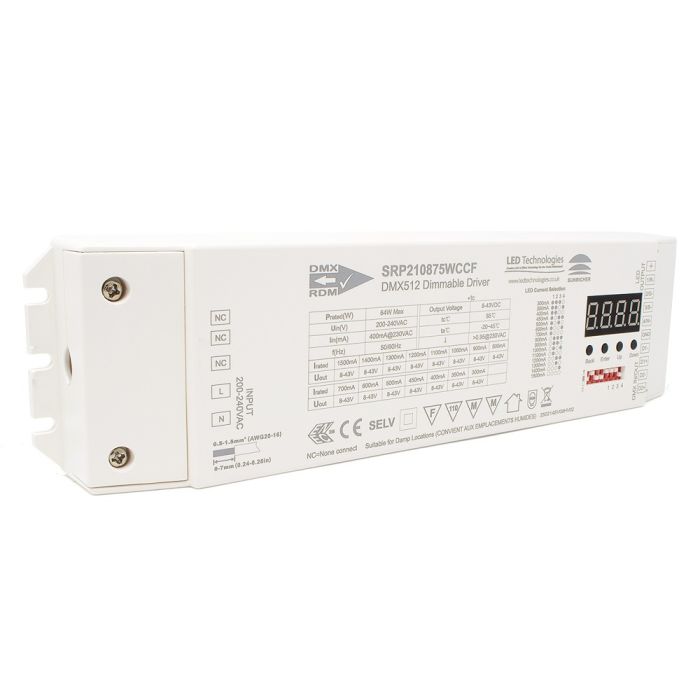

Sunricher DMX Professional 75W DMX512 Dimmable Driver

This 75W Constant Current, four-channel DMX driver from Sunricher features many professional features. These features include:

• RDM Bi-directional communication
• Adjustable PWM frequency (up to 35KHz)
• Adjustable PWM bit rate resolution of 8bit or 16bit
• Adjustable dimming curve of either linear or logarithmic, with gamma values from 0.1 to 9.9.

This efficient DMX LED Driver has a high power factor of >0.9 at 230V AC. It has an "in-built" short circuit protection with automatic recovery after the fault condition is removed.

The constant current LED Driver is compatible with all DMX512 master controllers and it can be used for many professional projects including installation in commercial or domestic premises. However, with the features detailed above it is particularly suitable for use in film and TV production.

The driver has an adjustable output from 300mA up to 1,500mA and will control four-channel LED products up to a maximum total output load of 75W.

This DMX Driver has two modes of operation and can be set to either DMX mode or Master mode. DMX mode is used when the driver is connected to a DMX512 controller and Master mode enables you to test your lighting products and also select several dimming levels or built-in programs that will run without the need for a DMX controller.

Note: More information on the programs and dimming levels available are detailed in the included Datasheet/instruction manual.

The output current is selectable using the dip switches on the front panel of the DMX driver and the various running options and settings are achieved by using the menu buttons and digital display. The driver can be set to single-channel, Dual-channel, three-channel or four-channel modes depending on your requirements for powering LED strips or other lighting.
