15 Year Professional Warranty
carpenterTrade LED cabinet lighting

Simpilio LED Cabinet Lighting Systems

A matched 12V and 24V plug-and-play cabinet lighting system for cabinet makers, joiners, kitchen fitters and furniture makers.

calculateBuild Your First Specification countertopsSee Where It Fits
The complete trade system

One Cabinet Lighting System. Every Part Matched.

Simpilio is a plug-and-play 12V and 24V LED cabinet lighting system for fitted furniture professionals. Choose the light for the furniture, then complete the installation with compatible power, control and cabling.

lightstripExplore the Complete Lighting Range
Built for the Furniture Trade
For cabinet makers, joiners, carpenters and kitchen fitters.
Choose the Right Lighting
COB strip, Neon Flex, Angle Neon, lightbars and puck lights.
Complete One Matched System
Compatible drivers, controls, splitters and plug-and-play cabling.
Supported in the UK
Office-hours support from the LED Technologies team.
How the parts connect

Power, Control and Lighting in One Clear System

Choose the lighting for the furniture, then connect it to matched drivers, distribution, controls and cabling. Each part has a defined place in the installation.

01 bolt

Driver

Converts the supply to matched 12V or 24V low-voltage power.

02 account_tree

Distribution

Connects the driver to master or channel control and the lighting runs.

03 cable

Cabling

Routes compatible connecting and extension cables around the furniture.

04 lightstrip

Lighting

Feeds the chosen strip, lightbar or puck light for the finished detail.

LED cabinet lighting applications

LED Cabinet Lighting for Fitted Furniture

Cabinet makers, joiners and kitchen fitters can use one familiar Simpilio system across kitchens, wardrobes, shelving, media units, retail displays and bespoke furniture.

LED lighting fitted inside kitchen cabinetry
countertops

Kitchen Cabinet Lighting

Worktops, islands and cabinet interiors.

LED lighting installed inside a fitted wardrobe
door_front

Fitted Wardrobe Lighting

Rails, shelves and dressing rooms.

Illuminated drawers in bespoke bedroom furniture
inventory_2

LED Drawer Lighting

Storage that lights as it opens.

Concealed LED lighting in a media unit
tv

Media Unit Lighting

TV units, niches and display shelves.

LED lighting integrated into retail display shelving
storefront

Retail Display Lighting

Clean light for products and shelving.

Low-level LED kickboard lighting in fitted furniture
line_weight

Kickboard and Plinth Lighting

Plinths and low-level furniture runs.

Trade LED cabinet lighting range

Choose the Right LED Cabinet Lighting

Match the light to the furniture detail: COB strip for straight routed runs, Neon Flex for curves, Angle Neon for corners or 3000K puck lights for individual cabinet light points.

Close-up of Simpilio COB LED strip for cabinet lighting Straight runs

COB LED Strip

Creates a continuous, dot-free line across straight furniture runs.

straighten Best forRouted channels, shelves and plinths.
  • Colours3000K / 4500K
  • Lengths1m / 3m / 5m
  • Voltage12V / 24V
  • FinishDot-free CRI90
shopping_cartShop COB Strip

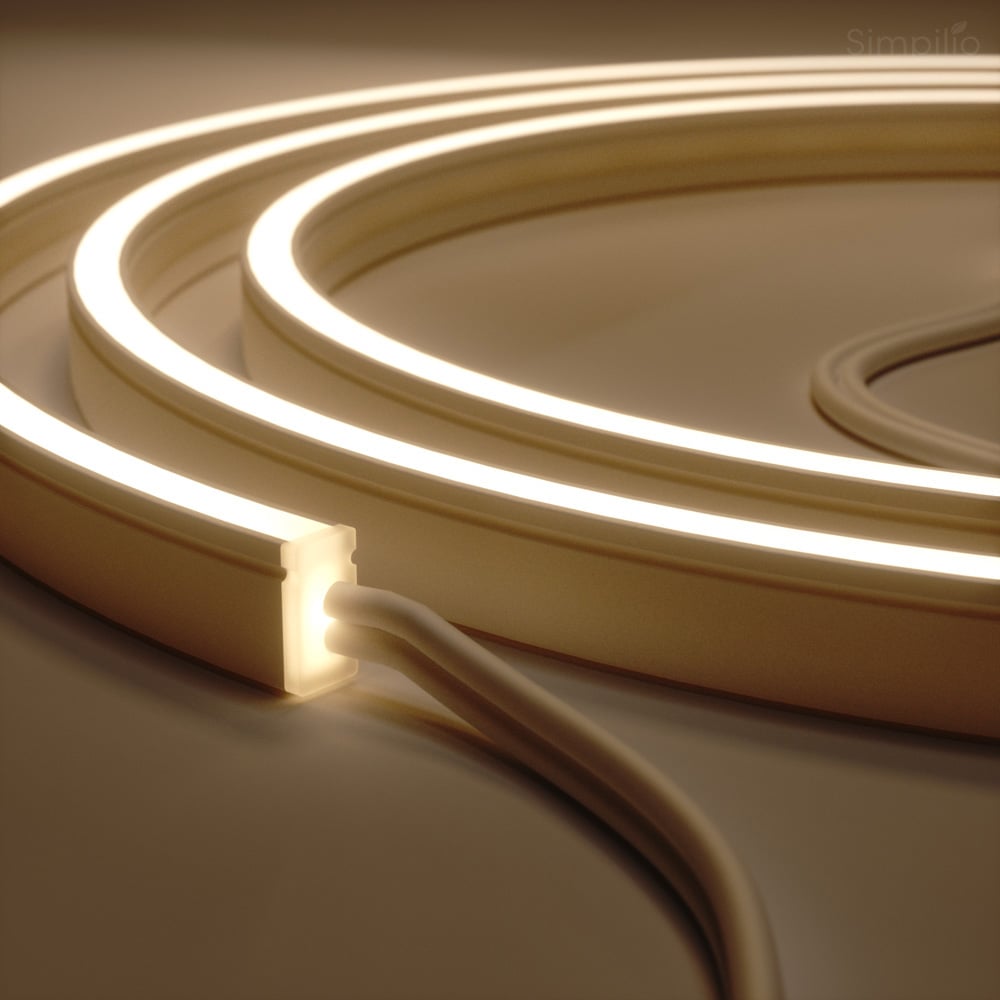

Close-up of Simpilio Neon Flex for curved cabinet lighting Curved details

Neon Flex

Creates a smooth line of light that follows gentle furniture curves.

gesture Best forCurved shelves, shaped joinery and flowing feature details.
  • Colours3000K / 4500K
  • Lengths1m / 3m / 5m
  • Voltage12V / 24V
  • FinishDiffused CRI90
shopping_cartShop Neon Flex

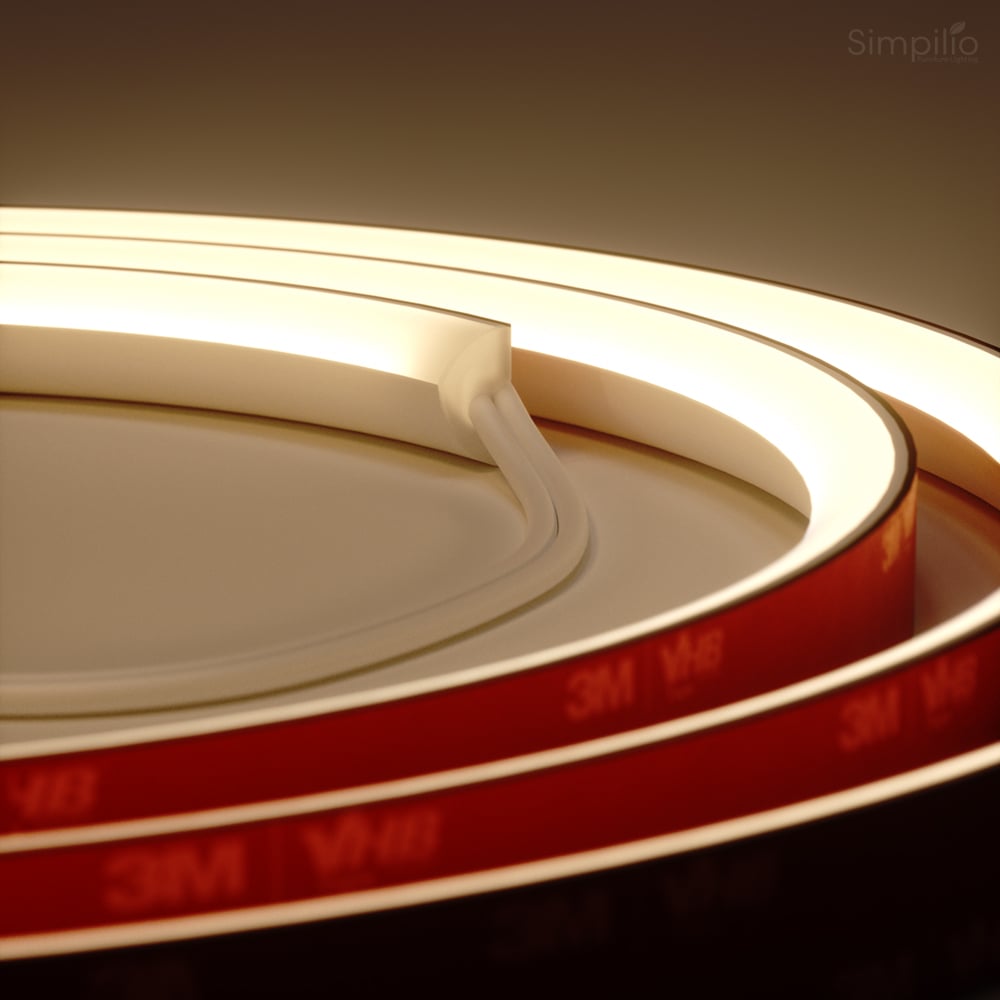

Close-up of Simpilio Angle Neon for corner cabinet lighting Corner details

Angle Neon

Projects clean light forward from corners and concealed furniture edges.

call_made Best forCorner routes, shelf returns and forward-facing details.
  • Colours3000K / 4000K
  • Lengths1m / 3m / 5m
  • Voltage12V / 24V
  • FinishIP44 / CRI90
shopping_cartShop Angle Neon

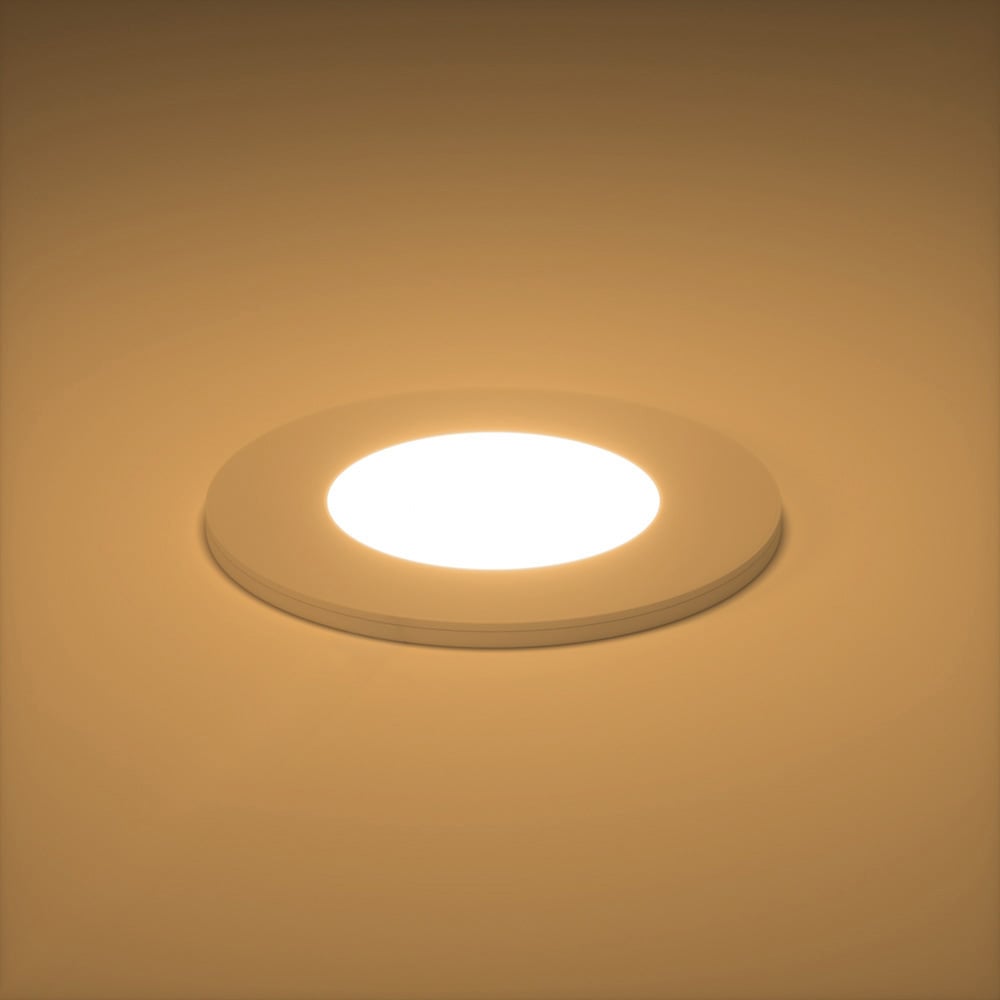

Close-up of Simpilio 3000K white cabinet puck light Point lighting

White Puck Lights

Adds compact warm white light exactly where each cabinet needs it.

wb_incandescent Best forShelves, wardrobes, cabinets and individual light points.
  • Colour3000K
  • FormatIndividual puck
  • Voltage12V / 24V
  • ConnectionWired light
shopping_cartShop Puck Lights
Ready-built lightbars

Pre-Installed Lightbars for Faster Cabinet Builds

Choose the mounting style, cut the 3000K lightbar to the furniture and connect it to a matched 24V Simpilio system.

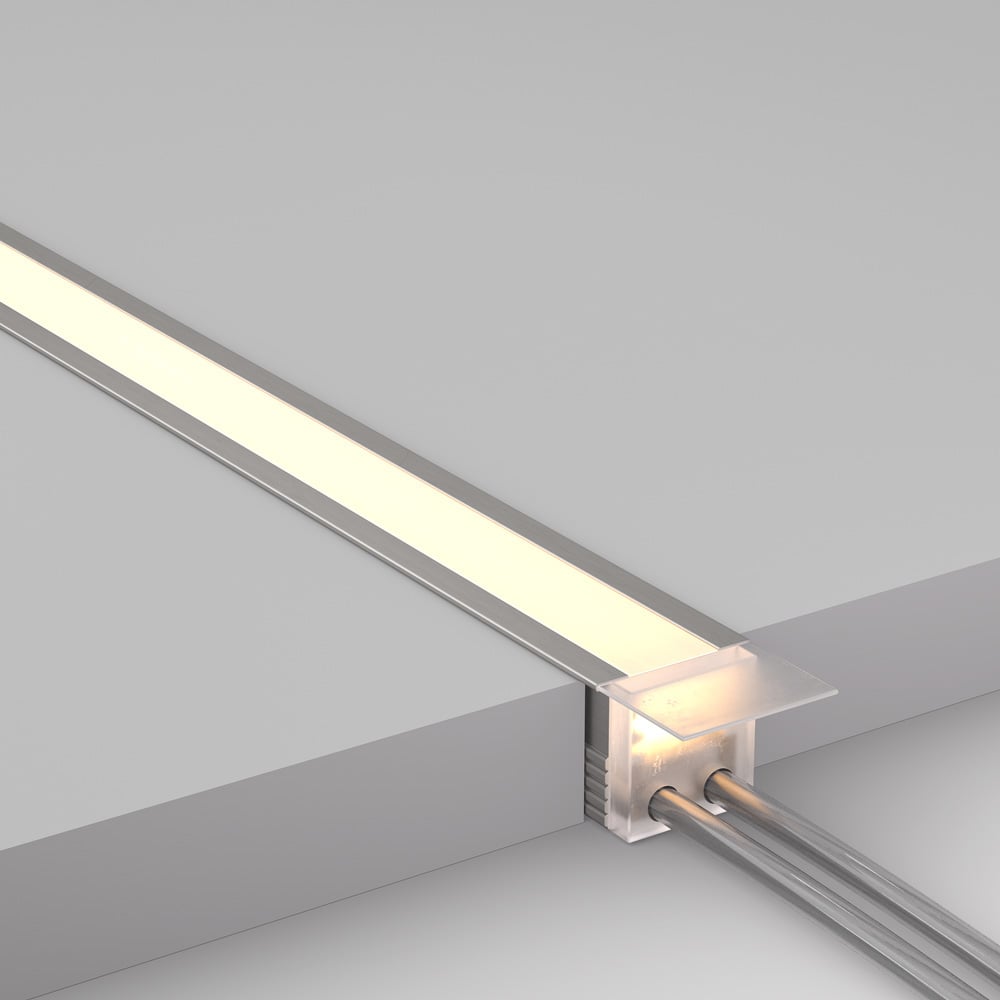

Illuminated Simpilio recessed cabinet lightbar Flush recessed fitting

Recess Lightbar

A ready-built aluminium lightbar for routed cabinet and shelf details.

vertical_align_center Best forFlush shelves, wardrobes and clean routed joinery.
  • Light colour3000K
  • Voltage24V only
  • LED formatPre-installed
  • Lengths300 - 2400mm
  • CuttingFree cutting
shopping_cartShop Recess

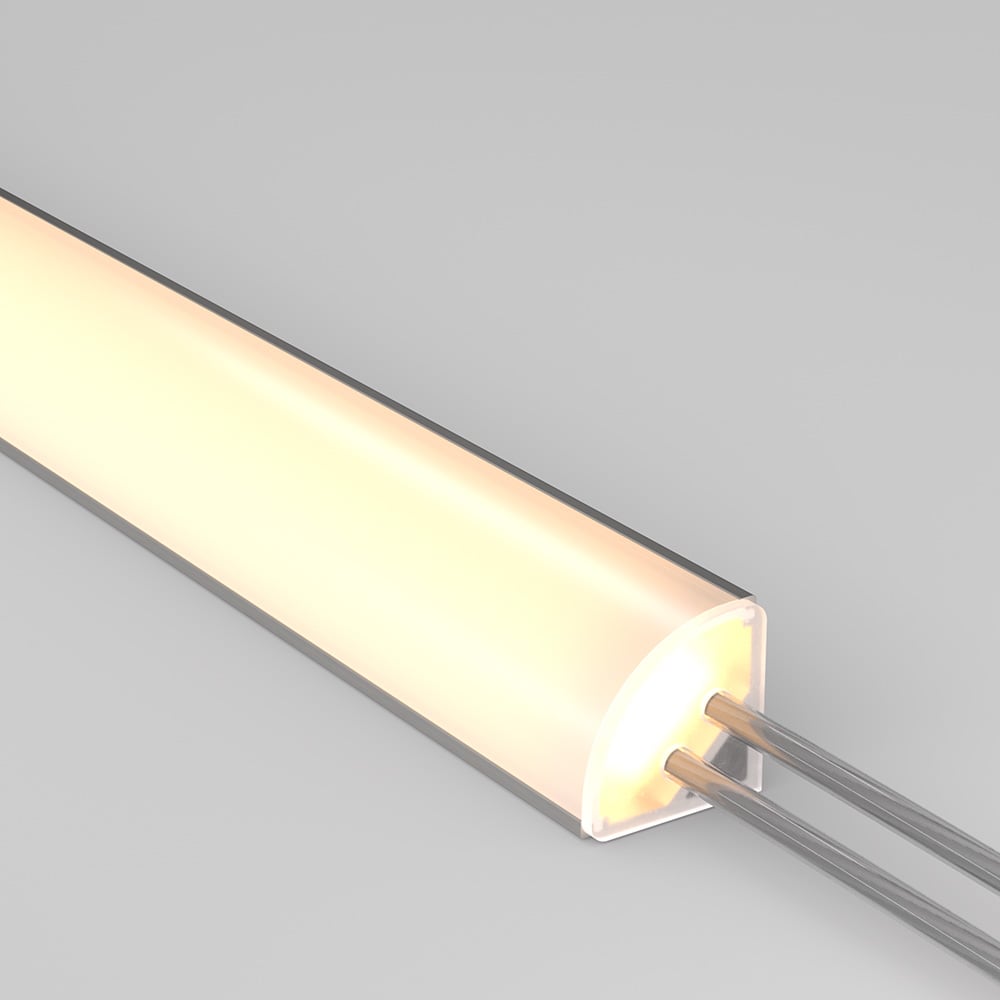

Close-up of illuminated Simpilio corner lightbar and end caps 13 x 13mm corner fitting

Corner Lightbar

A ready-built corner profile that projects light across cabinet interiors.

call_made Best forInternal corners, shelf returns and cabinet edges.
  • Light colour3000K
  • Voltage24V only
  • Profile size13 x 13mm
  • Lengths900 / 2400mm
  • CuttingFree cutting
shopping_cartShop Corner

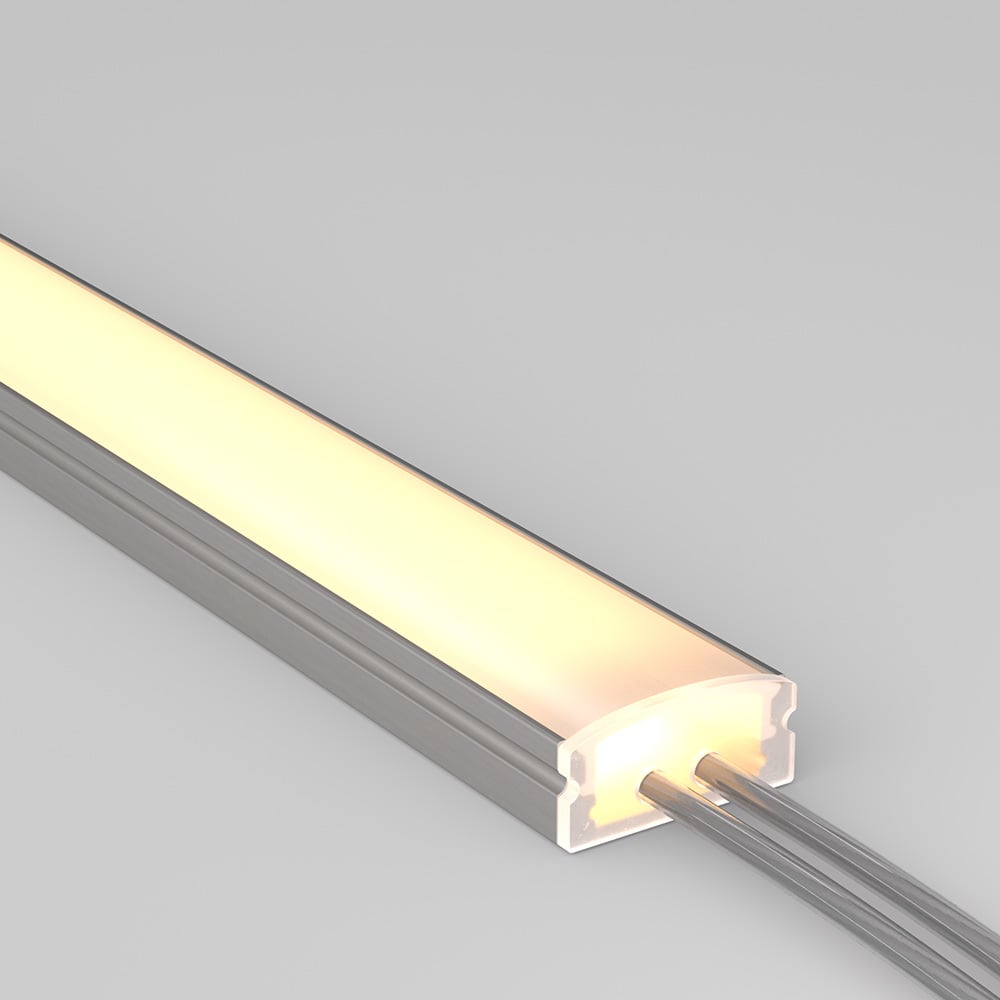

Close-up of illuminated Simpilio surface-mounted lightbar and end caps 17 x 9mm surface fitting

Surface-Mount Lightbar

A slim ready-built lightbar that fits directly onto finished furniture panels.

layers Best forShelves and cabinets where routing is not required.
  • Light colour3000K
  • Voltage24V only
  • Profile size17 x 9mm
  • Lengths300 - 2400mm
  • CuttingFree cutting
shopping_cartShop Surface
Switching and control

Take Control of Your Cabinet Lighting

Choose how the lighting responds to the furniture and the people using it, from automatic door activation to touch-free and wireless switching.

One System or Separate Zones?

Choose master control for one shared response or channel control for independent furniture areas.

hub

Master Control

All lights together. One sensor or switch operates every connected light at the same time.

account_tree

Channel Control

Separate lighting zones. Individual cabinets, shelves or compartments can respond independently.

Simpilio door sensor controlling fitted cabinet lighting
sensor_doorAutomatic opening control

Door-Activated Lighting

Automatically switches the cabinet light on when a door or drawer opens, then switches it off again when the furniture closes.

TriggerDoor movement
Best forDoors and drawers
System choiceMaster or channel
InstallationNear the opening edge
Product references
300.063300.064300.068300.069
shopping_cartBrowse Door Sensors
Simpilio PIR motion sensor for fitted furniture lighting
directions_runMovement-activated control

PIR Motion Control

Detects movement near the furniture and switches the lighting automatically as somebody approaches or works nearby.

TriggerBody movement
Best forFrequently used areas
System choiceMaster or channel
InstallationFacing the detection area
Product references
300.065300.066300.070
shopping_cartBrowse PIR Sensors
Concealed Simpilio radar sensor operating cabinet lighting
radarConcealed sensor control

Hidden Radar Control

Hides behind a suitable non-metal surface to provide discreet, touch-free control for an individual lighting channel.

TriggerConcealed detection
Best forMinimal visible hardware
System choiceChannel control
InstallationBehind a non-metal surface
Product reference
300.072
shopping_cartBrowse Radar Control
Hand-wave sensor controlling Simpilio cabinet lighting
sign_languageContactless manual control

Hand-Wave Control

A deliberate hand gesture switches the lighting without contact, giving direct control while keeping furniture and work areas clean.

TriggerHand gesture
Best forKitchens and work areas
System choiceRF switching
InstallationWithin easy hand reach
Product reference
300.074
shopping_cartBrowse Wave Sensors
Touch sensor fitted beneath illuminated cabinet furniture
touch_appDirect furniture control

Touch Control

Provides a clear switching point on or beneath the furniture, with visible, dual and concealed sensors for different installations.

TriggerDirect touch
Best forAccessible furniture panels
System choiceMaster, channel or RF
InstallationOn or beneath furniture
Product references
300.061300.062300.067300.071300.073
shopping_cartBrowse Touch Controls
Wireless RF smart switch for Simpilio fitted furniture lighting
settings_remoteWireless switching

RF Smart Switching

Pairs wireless switches with a compatible receiver or splitter, allowing flexible control where routing a switch cable is difficult.

TriggerWireless switch
Best forFlexible switch positions
System choiceMatched RF receiver
InstallationNo switch cable required
Product references
300.075300.076300.077300.078
shopping_cartBrowse RF Switches
One matched system

How the Simpilio System Works

Measure the furniture runs first, then match the lighting, power, control and cabling on one compatible platform.

01 straighten
Planning

Measure the Runs

Calculate the total length. One strip can serve up to two runs using the cables at both ends.

02 lightstrip
Lighting

Choose the Light

Select strip, a ready-built lightbar or puck lights to suit the cabinet detail.

03 bolt
Power

Match the Driver

Add the lighting load and choose a 12V or 24V driver with suitable capacity.

04 sensors
Control

Select the Control

Choose door, PIR, touch, radar or RF control for the way the furniture should respond.

05 cable
Cabling

Plan the Cable Route

Choose connecting and extension cables, then plan accessible connection points around the furniture.

06 fact_check
Installation

Connect and Test

Plug together the matched cables, test every zone, then complete the final fixing.

verified One Complete Simpilio SystemLighting, driver, control and cabling specified together for a cleaner workshop build and site installation.

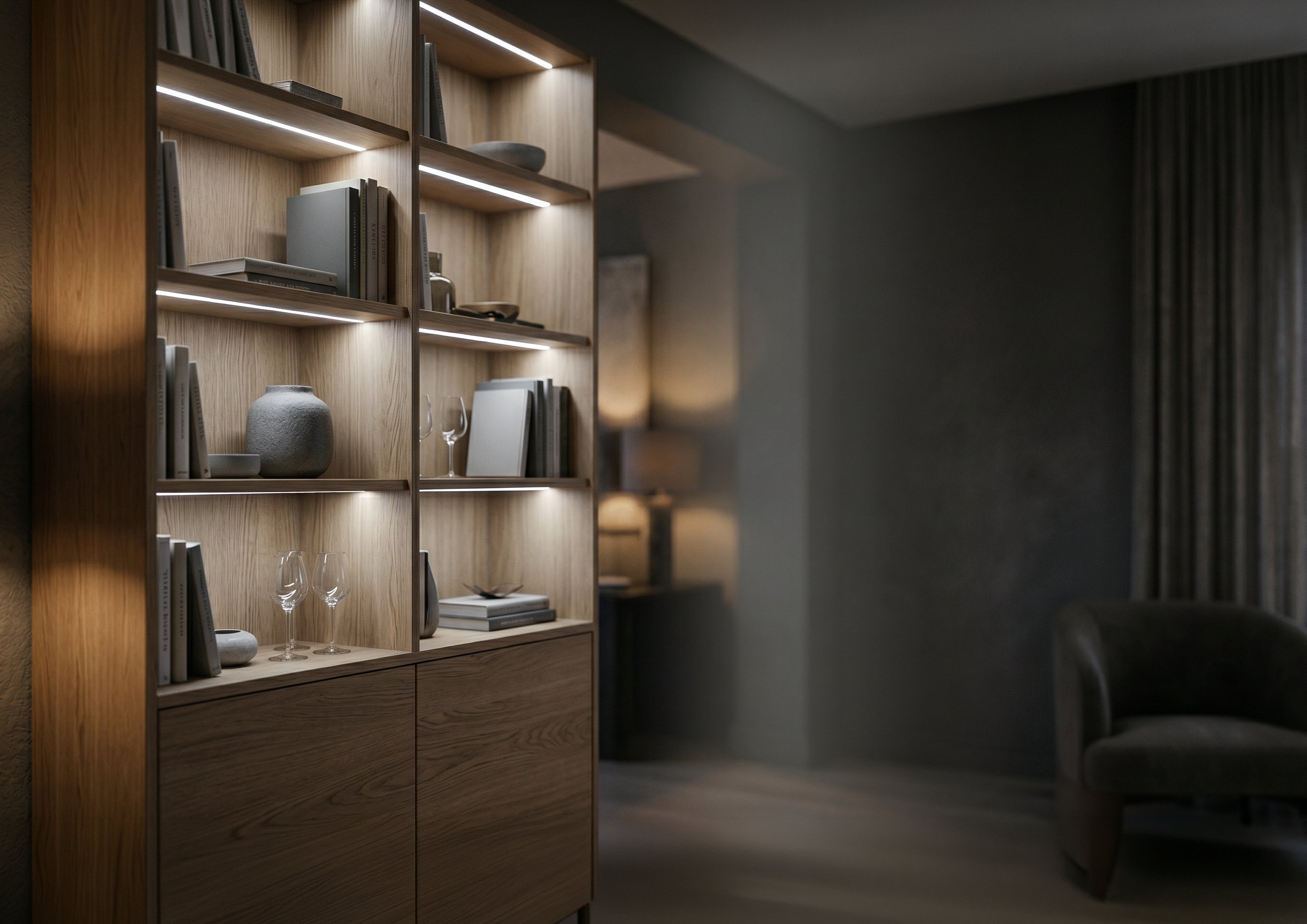

Close-up of illuminated bespoke shelving with concealed cabinet lighting
carpenterMade for the finished detail

Let the Joinery Take Centre Stage

Concealed fittings keep the focus on the cabinet work while even light brings each shelf to life.

15Year warranty

15-Year Warranty for Professionally Installed Systems

Simpilio is built for cabinet lighting that should last with the furniture, backed by LED Technologies Limited and supported through professional installation records.

verifiedLong 15 year cover engineeringProfessional installation required support_agentOffice-hours support infoTerms and conditions apply
Workshop and site support

Fit With Confidence

Use the short trade guides to plan the job, prepare the lighting and complete a clean installation.

Simpilio Overview Guide A quick introduction to the complete cabinet lighting system.

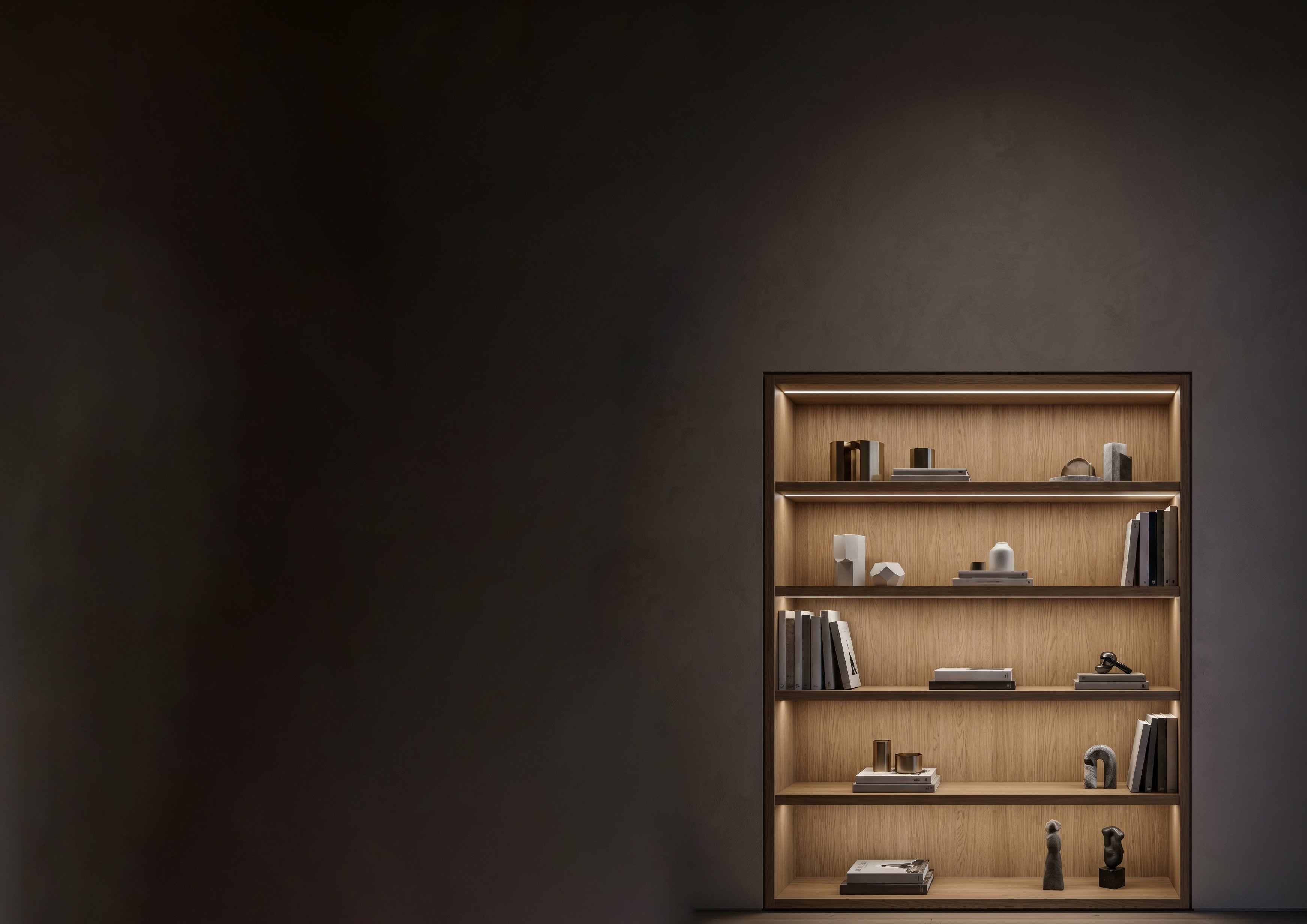

Dark fitted interior with warm illuminated timber display shelving
design_servicesPlanned with the furniture

Designed In From the First Cut

Plan the lighting with the joinery for a faster fit and a cleaner finished result.

engineeringSimpilio trade specification

Project Specification and Order Planner

Enter the application, run lengths and controls to calculate a compatible bill of materials. Smart checks flag missing driver, control and cabling items before ordering.

Technical reference

Technical Details for Ordering

The key figures are gathered here for estimators, workshop teams and installers who need to check the final specification.

Lighting family Product references Lighting format Best use Colour Voltage Protection Complete with Available sizes
COB LED Strip 300.001-300.013 Flexible dot-free strip Straight routed runs 3000K / 4500K 12V / 24V IP65 / CRI90 Matched driver, splitter and cabling 1m / 3m / 5m
Neon Flex 300.014-300.037 Flexible diffused strip Curves and shaped details 3000K / 4500K 12V / 24V IP65 / CRI90 Matched driver, splitter and cabling 1m / 3m / 5m
Angle Neon 300.038-300.049 Angled diffused strip Corners and shelf returns 3000K / 4000K 12V / 24V IP44 / CRI90 Matched driver, splitter and cabling 1m / 3m / 5m
White Puck Lights 300.079 / 300.082 Circular point light Cabinet point lighting 3000K 12V / 24V Wired format Matched driver, splitter and cabling Individual lights
Recess Lightbar 300.083-300.086 Recessed pre-built lightbar Flush routed furniture details 3000K 24V Pre-installed / free cutting 24V driver and recess starter cable 300 / 600 / 900 / 2400mm
Corner Lightbar 300.092-300.093 Corner pre-built lightbar Internal corners and shelf returns 3000K 24V 13 x 13mm / free cutting 24V driver and corner starter cable 900 / 2400mm
Surface-Mount Lightbar 300.099-300.102 Surface pre-built lightbar Direct fitting to finished panels 3000K 24V 17 x 9mm / free cutting 24V driver and surface starter cable 300 / 600 / 900 / 2400mm
info Match the driver voltage to the lighting, allow suitable wattage headroom and keep every driver ventilated and accessible.
Trade resources

Everything You Need to Specify and Install

Move from project measurements to a checked Simpilio system with the product, planning and support routes below.

descriptionProduct referenceLighting families, formats and technical figures. constructionInstallation workflowPlan runs, connect the system and test before closing. calculateOrder plannerBuild a compatible project specification. support_agentTrade supportSpeak to LED Technologies about your project.
bolt

Matched Power

Choose 12V or 24V drivers with 60W and 100W options.

sensors

Flexible Controls

Use door, PIR, touch, hidden radar, hand wave or RF control.

account_tree

Simple Cabling

Complete the route with matched splitters and extension cables.

Common Trade Questions

Use one voltage throughout each lighting circuit. Longer total runs commonly suit 24V, while compact projects can use 12V.

Master control switches the full system together. Channel control lets separate cabinets or compartments operate independently.

Yes. Cut strip products only at their marked cut points and confirm the final reel allocation before installation.

Calculate the connected lighting load, then choose a matched driver with enough wattage headroom for reliable operation.

Fit the driver in a ventilated, accessible position so it can be checked or replaced without disturbing finished furniture.

Simpilio products carry a 15 year professional warranty when installed correctly. Full terms and conditions apply.

Have a Cabinet Lighting Project to Specify?

Start with your measurements, choose the right lighting and let the planner complete the matched system.

calculateBuild Your Specification support_agentSpeak to Trade Support
